All Spare Parts

Cardboard sleeve for SCHATTELLO with 12 segments, including 2 end caps, both fixed with screws (TX 30), inner Ø 35 cm, length 444 cm, thickness 0.5 cm.

Cardboard sleeve for SCHATTELLO with 8 segments, including 2 end caps, 1x fixed with clamps, 1x fixed with tape inner Ø 33 cm, length 444 cm, thickness 0,5 cm.

MAY-strap, for SCHATTELLO with infrared heaters, to secure the closed parasol, textile yellow / black, length 2 m.

MAY-strap for SCHATTELLO without infrared heaters, to secure the closed parasol, textile yellow / black, length 1.6 m.

Crank, width across flat 9 mm, with MAY-logo on handle, for DACAPO/RIALTO/SCHATTELLO/ALBATROS.

standard parts "Paket 02"

Cover plug on for spoke ending, with drill hole for canopy hook, colour in black, (till approx. 2011), fits for aluminium teleskopic shaft, fits for spoke profile 50 x 25 mm, fits for ALBATROS.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in grey, (till approx. 2011), fits for aluminium teleskopic shaft, fits for spoke profile 50 x 25 mm, fits for ALBATROS.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in white, (till approx. 2011), for aluminium teleskopic shaft, for spoke profile 50 x 25 mm, for ALBATROS.

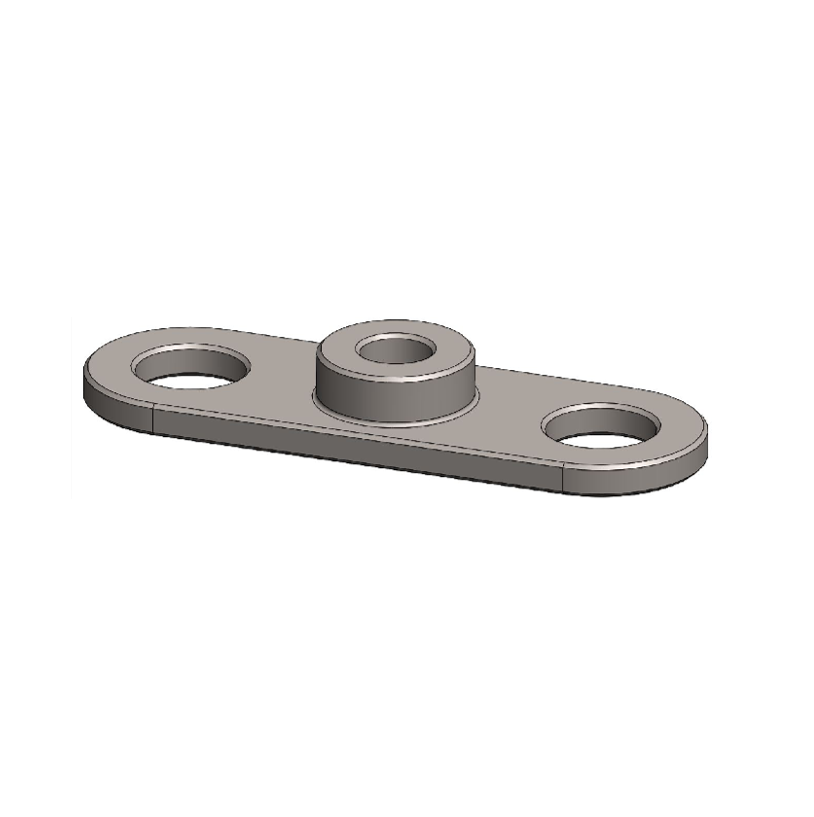

Repair plate for top cap fixation, thread M10 is made centrically, fixation with existing hexagon socked head screw; made of aluminium, fits for ALBATROS.

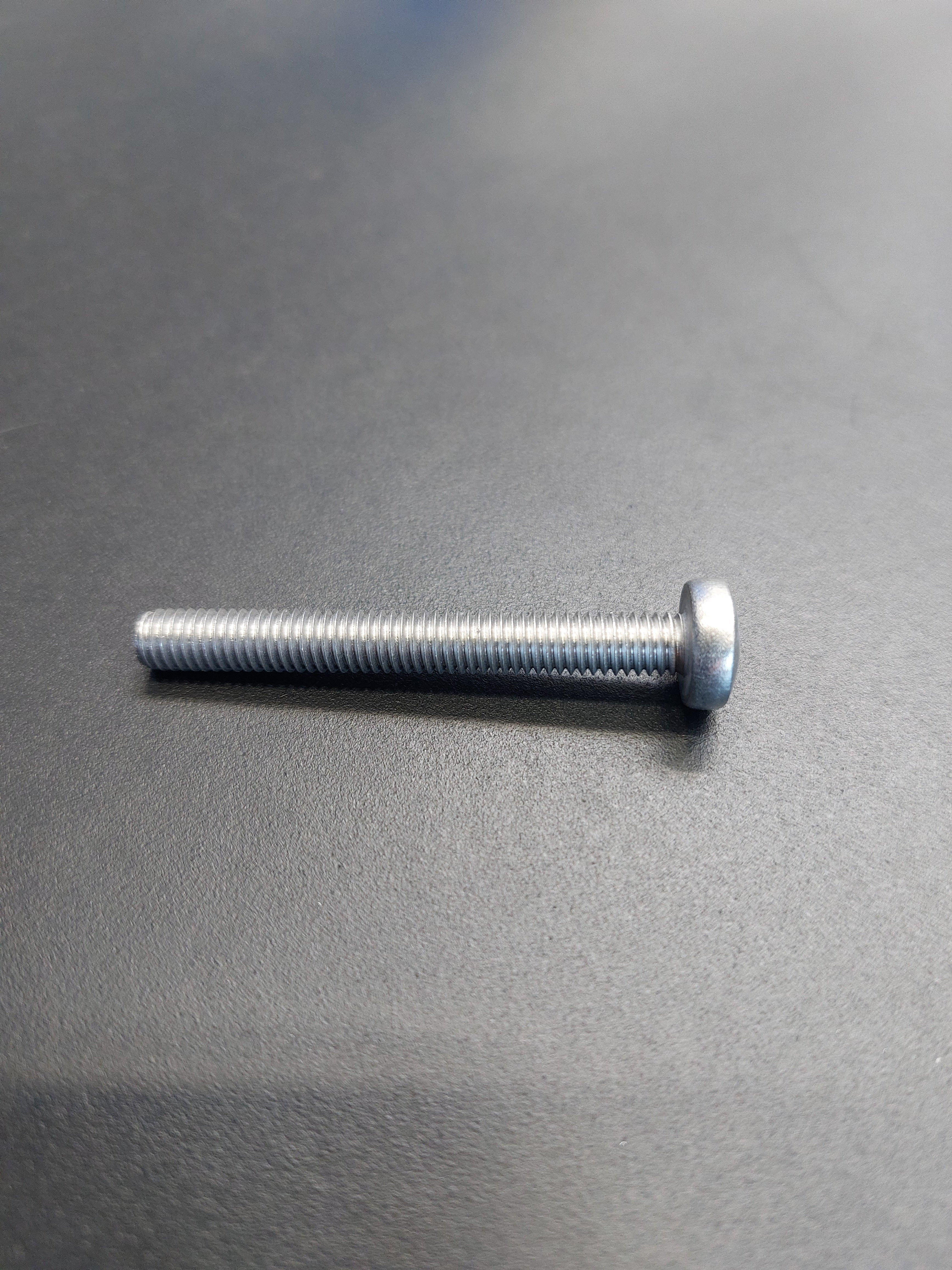

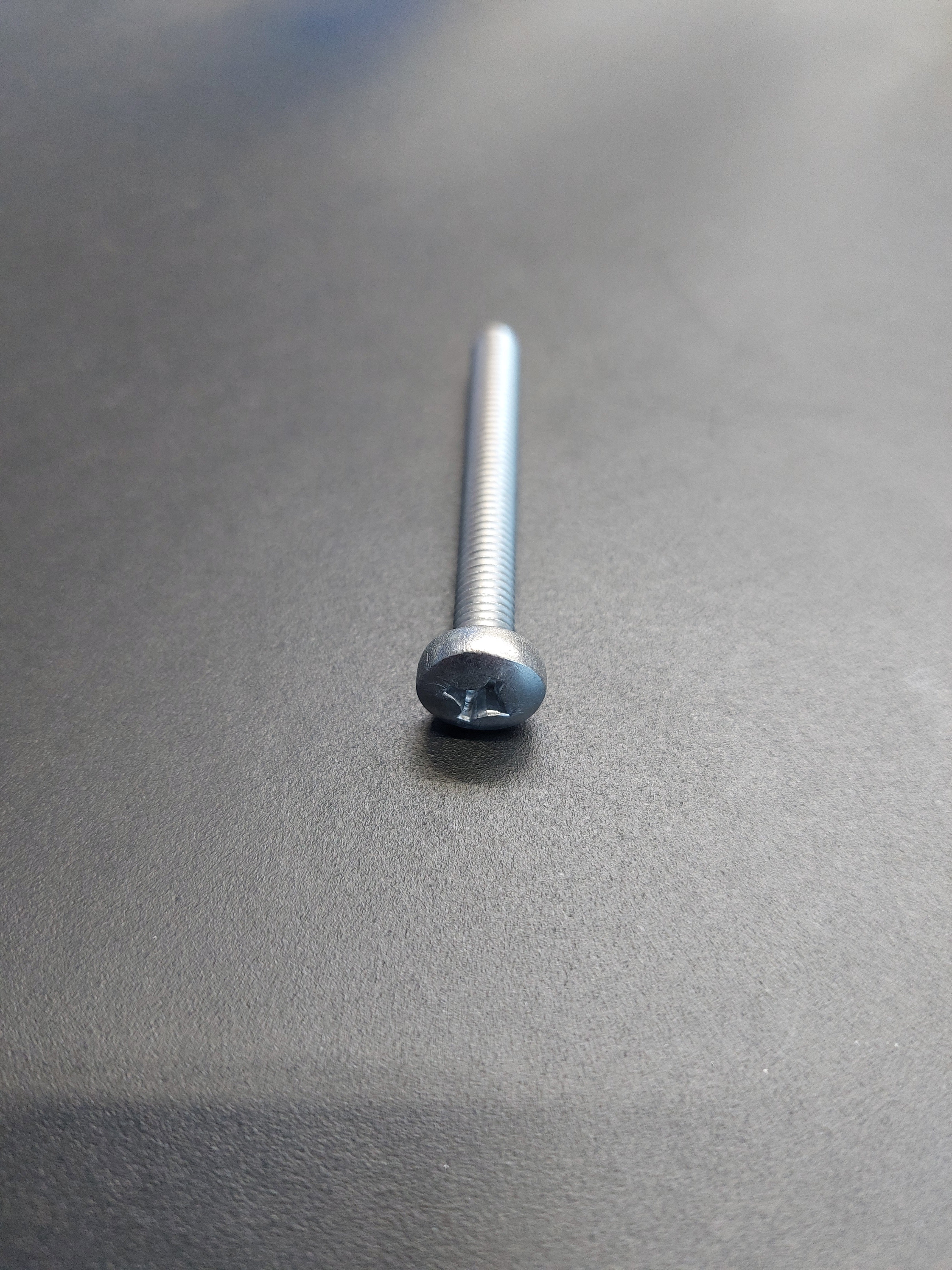

Flat-head screw with Z cross recess, stainless steel A2, M6 x 50 mm.

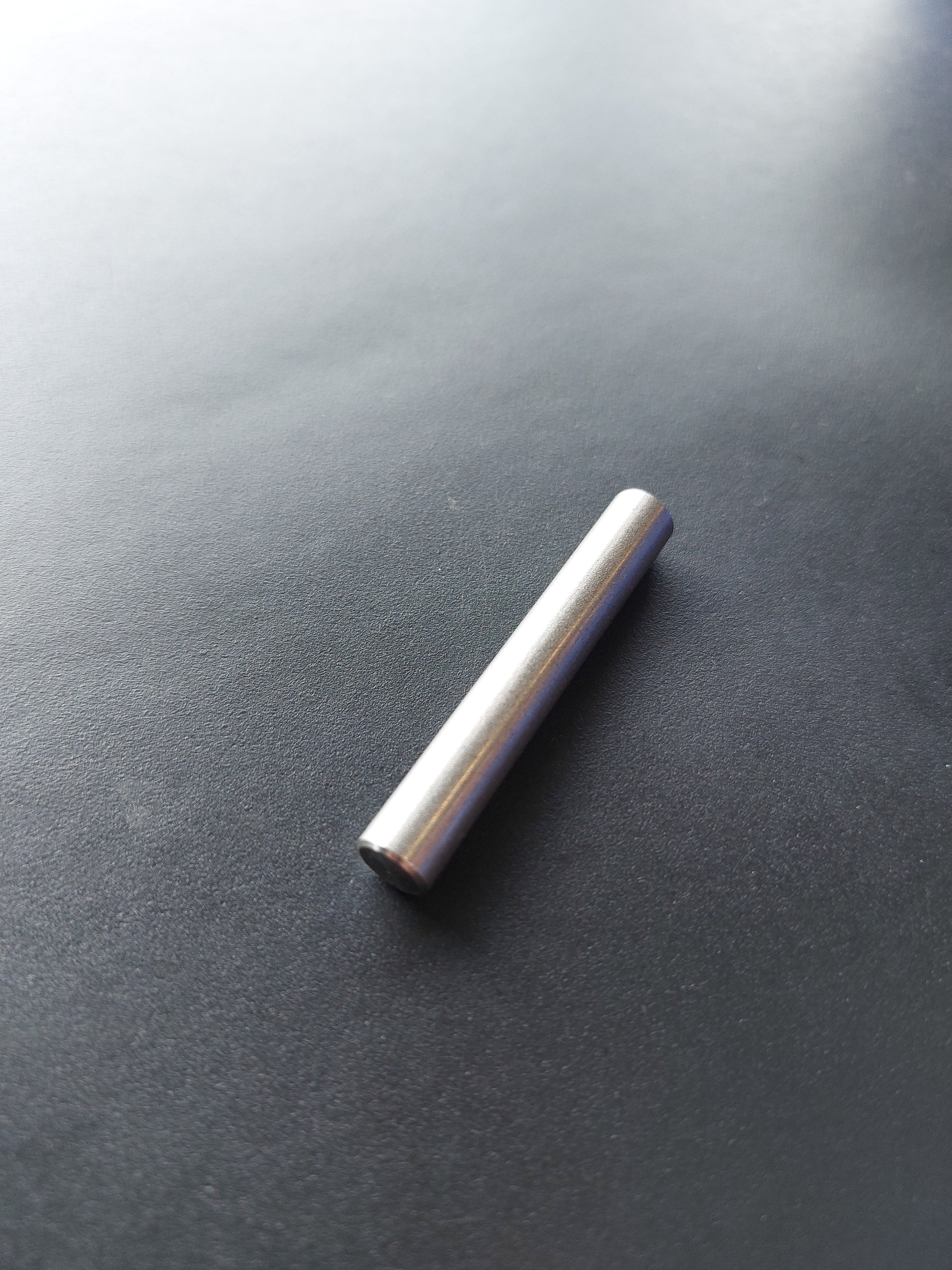

Cylinder bolt Ø 8 x 54 mm, on lower distribution flange, stainless steel A2, fits for ALBATROS.

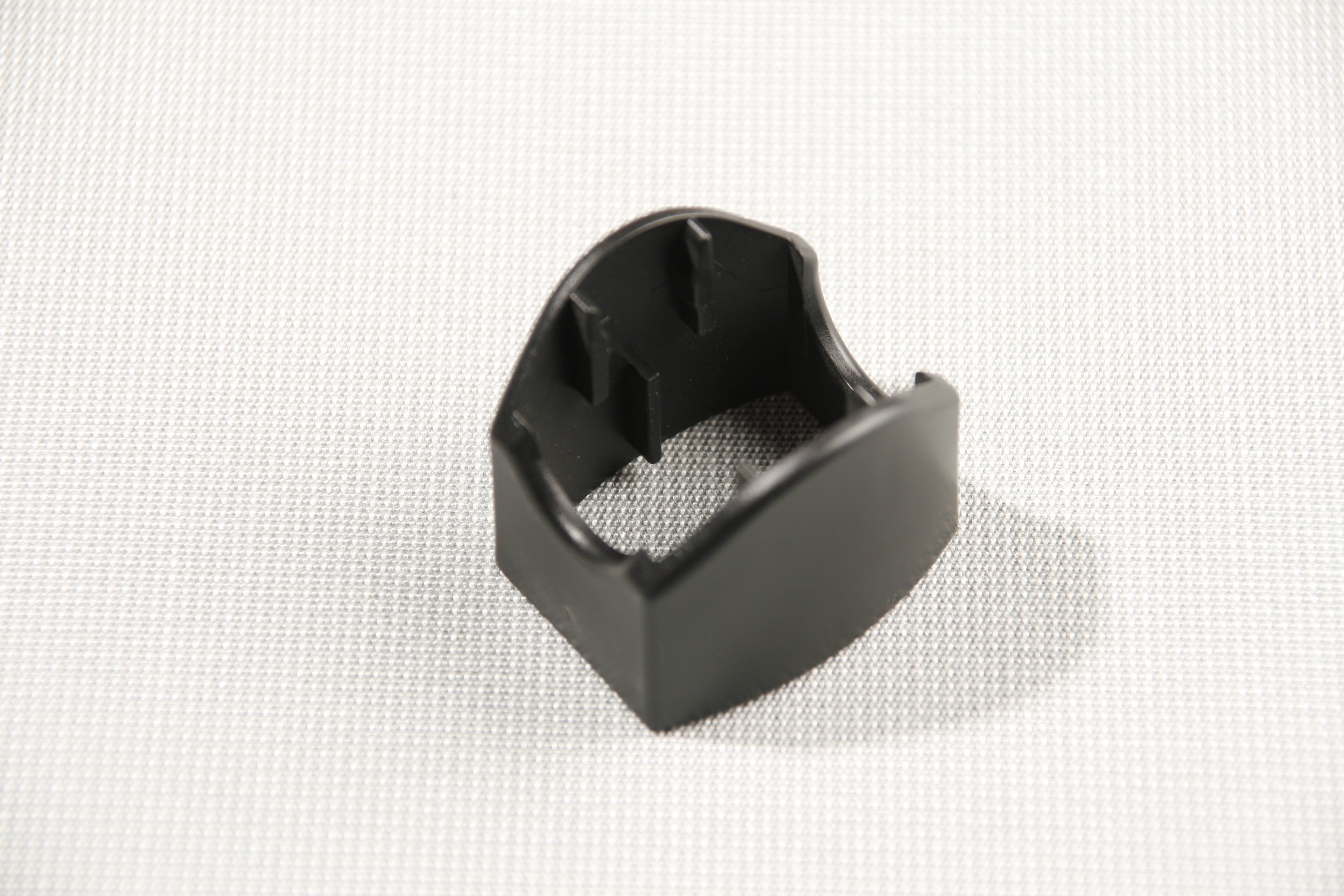

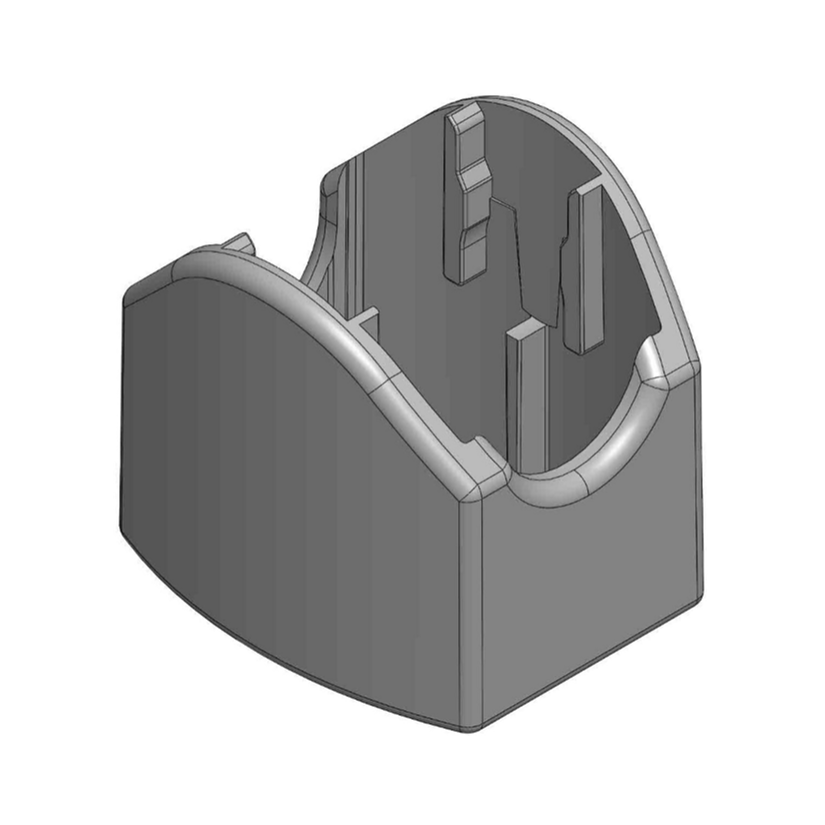

Protective cap, for bolt with head on support strut, for frame in RAL 8019 and 7016, plastic, colour black, (since approx. 2010), 36 x 47 mm, length 48 mm, for ALBATROS.

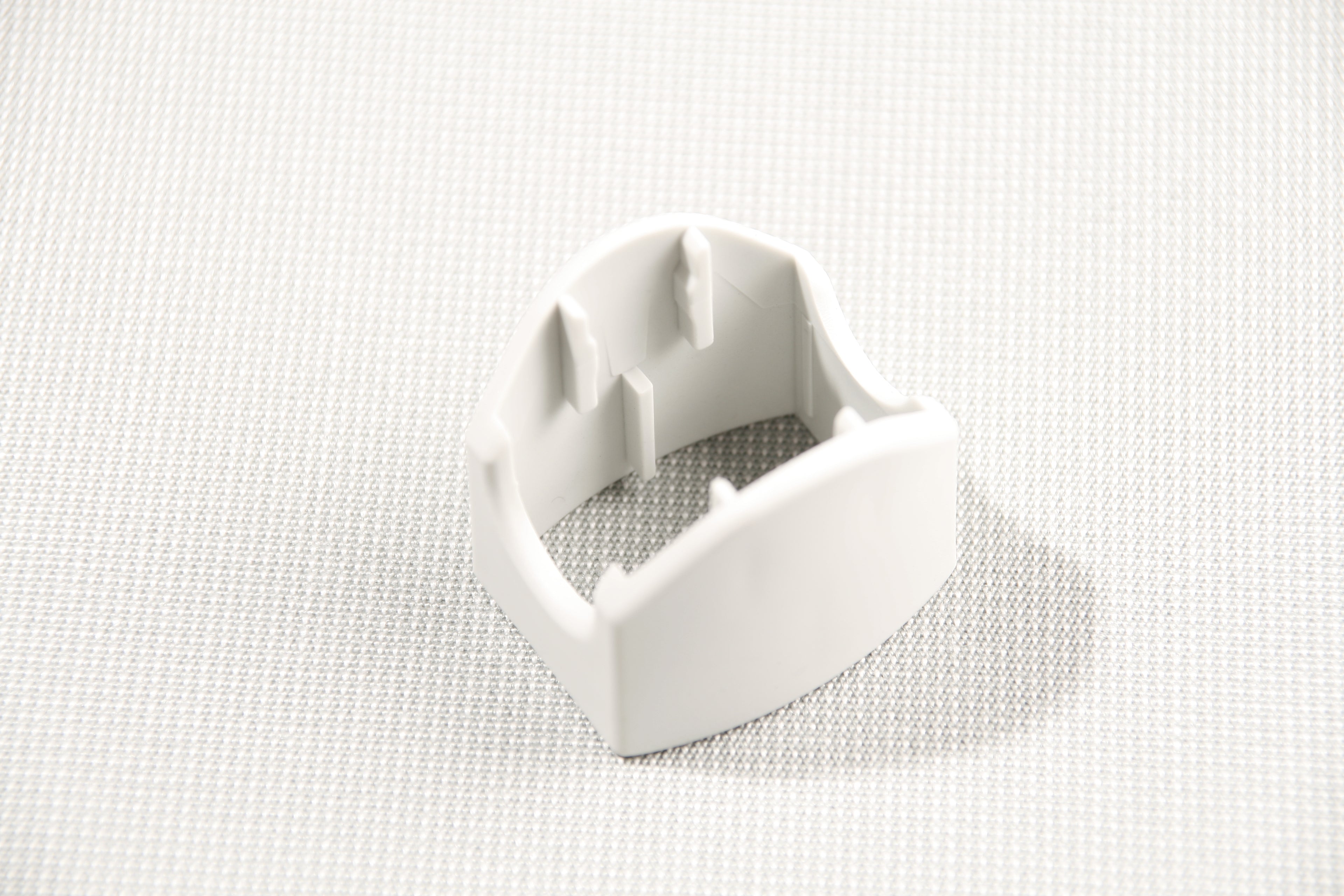

Protective cap, for bolt with head on support strut, fits for frame in RAL 9006, plastic, colour grey, (since approx. 2010), 36 x 47 mm, length 48 mm, fits for ALBATROS.

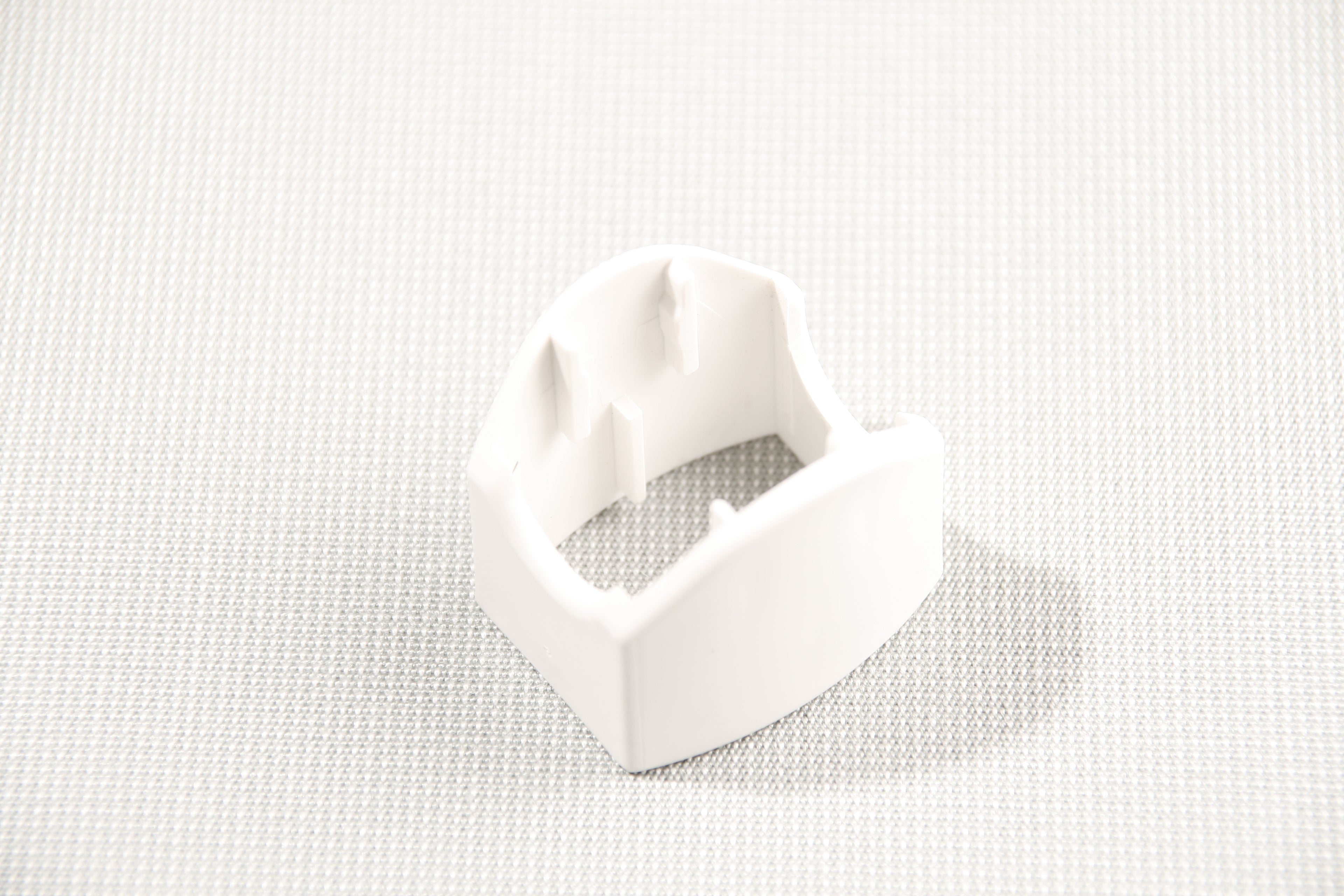

Protective cap, for bolt with head on support strut, for frame in RAL 9010, plastic, colour white, (since approx. 2010), 36 x 47 mm, length 48 mm, for ALBATROS.

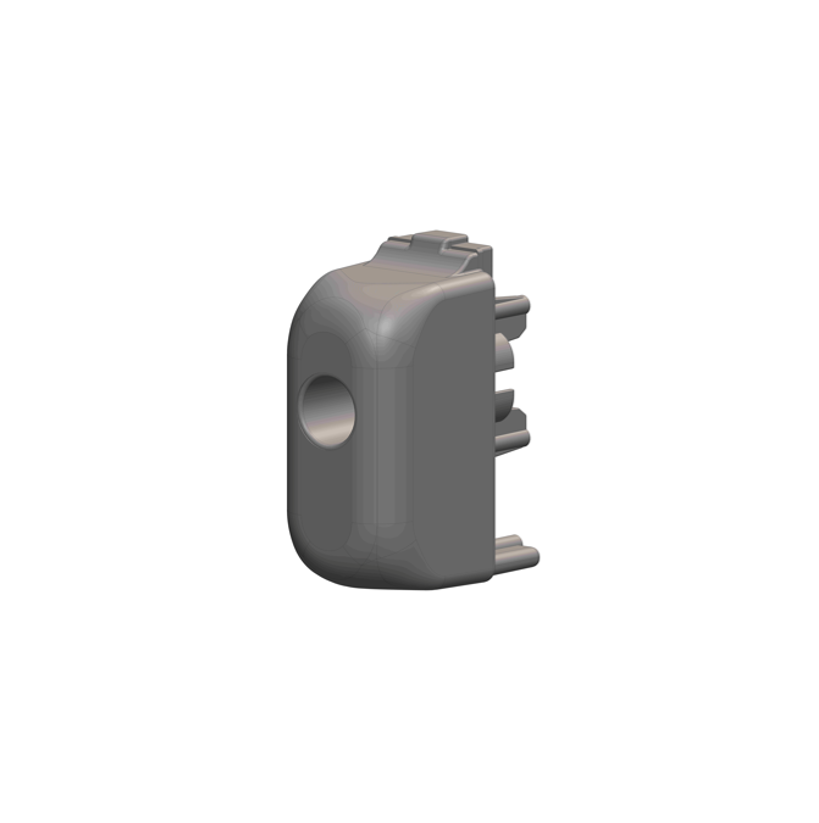

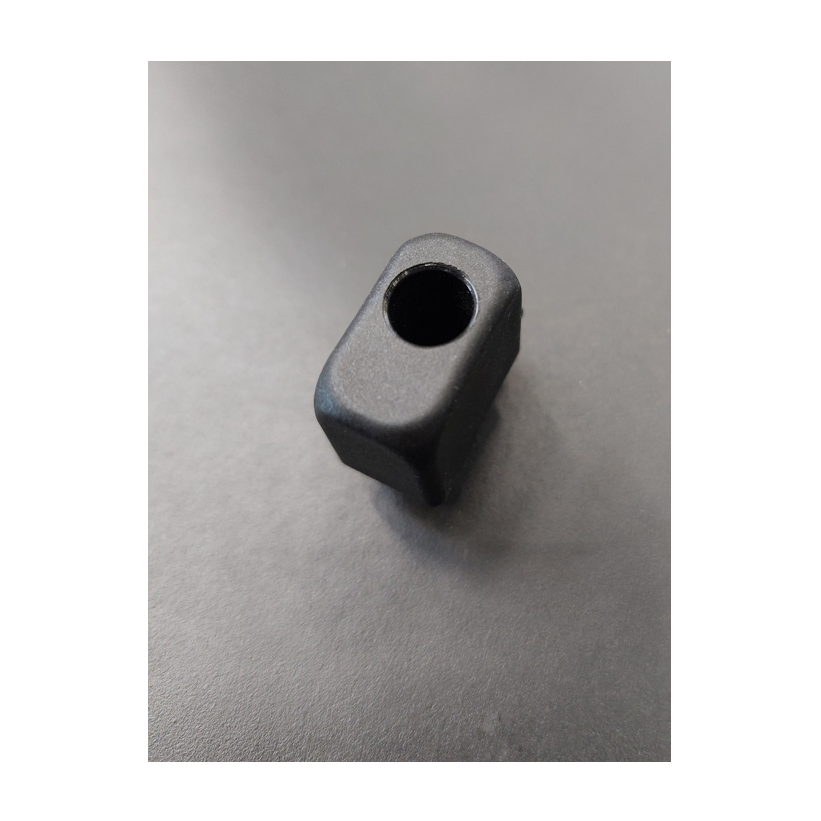

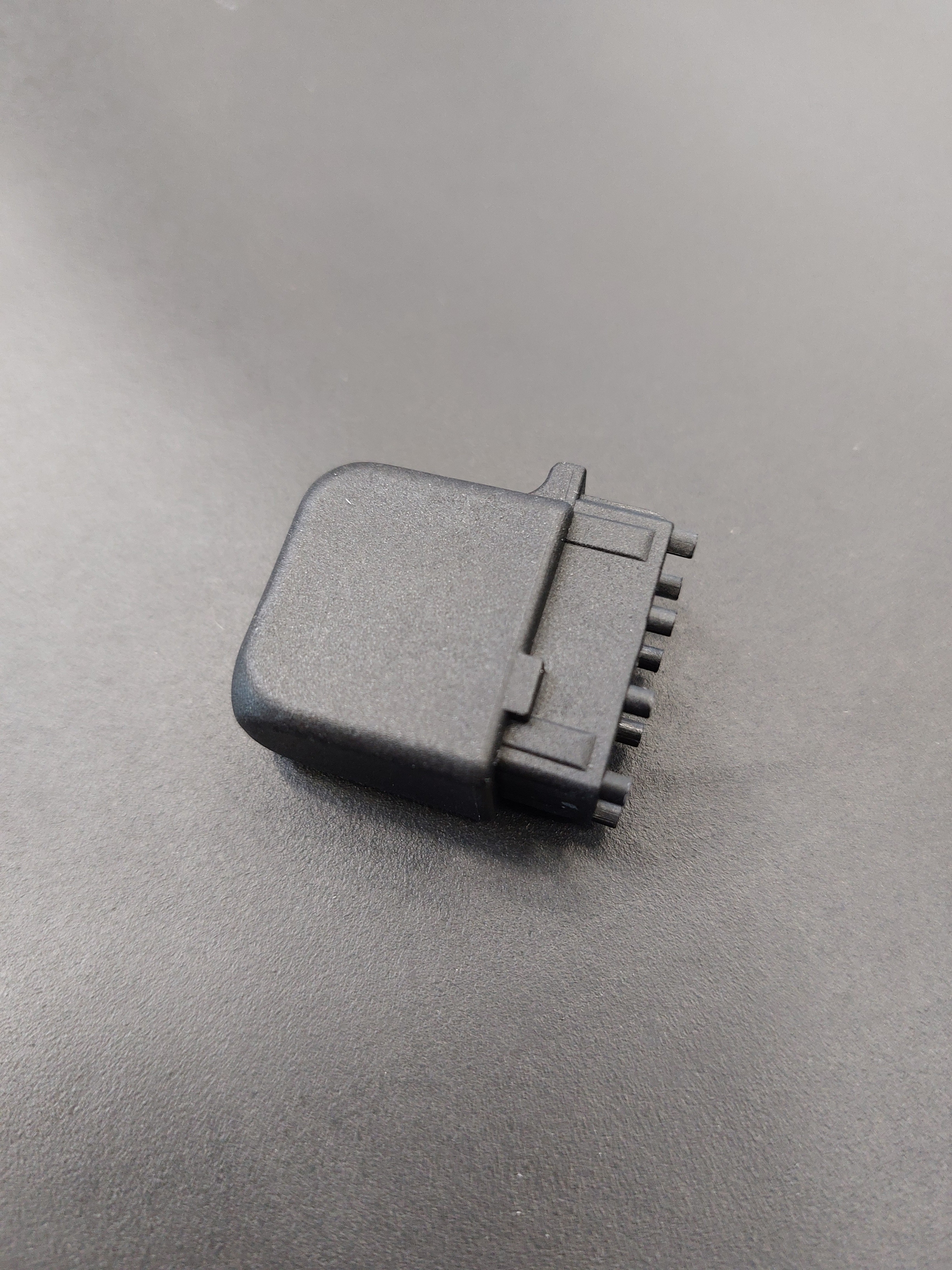

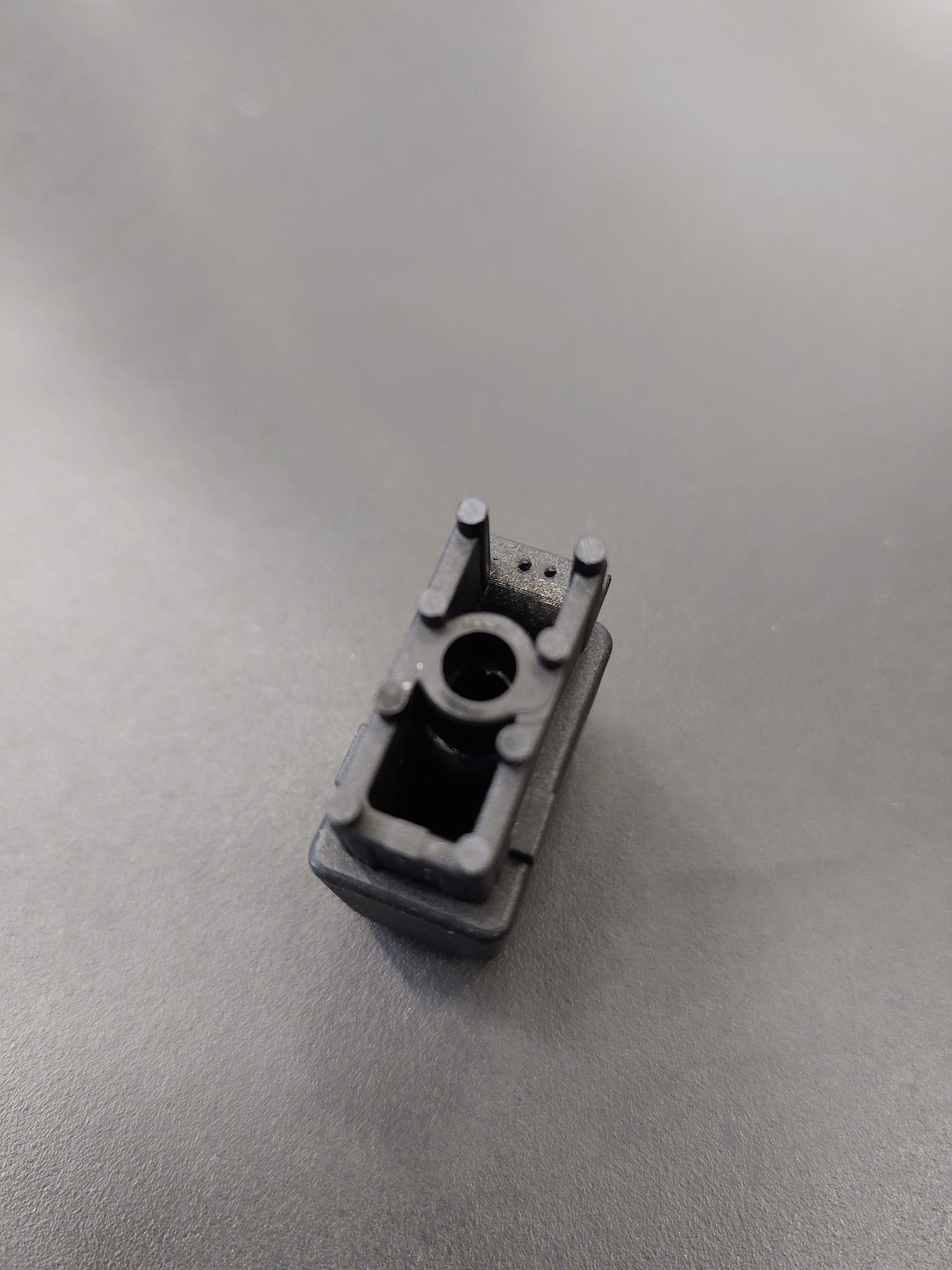

End cap on telescopic shaft for end of spoke, long version, fixation with screw, (since 2017 / 2018) plastic in black, 40 x 20 mm, length 39 mm, for ALBATROS.

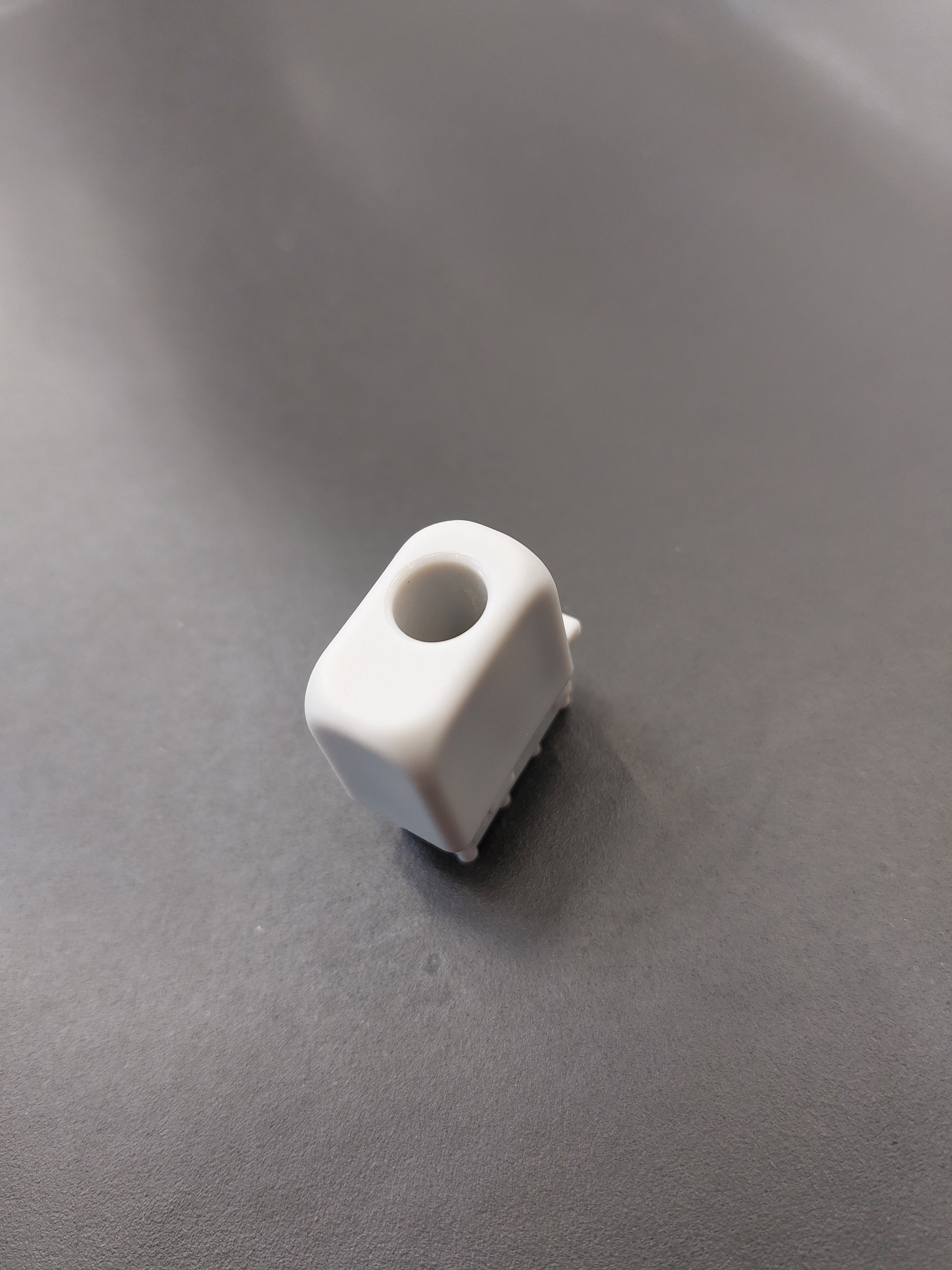

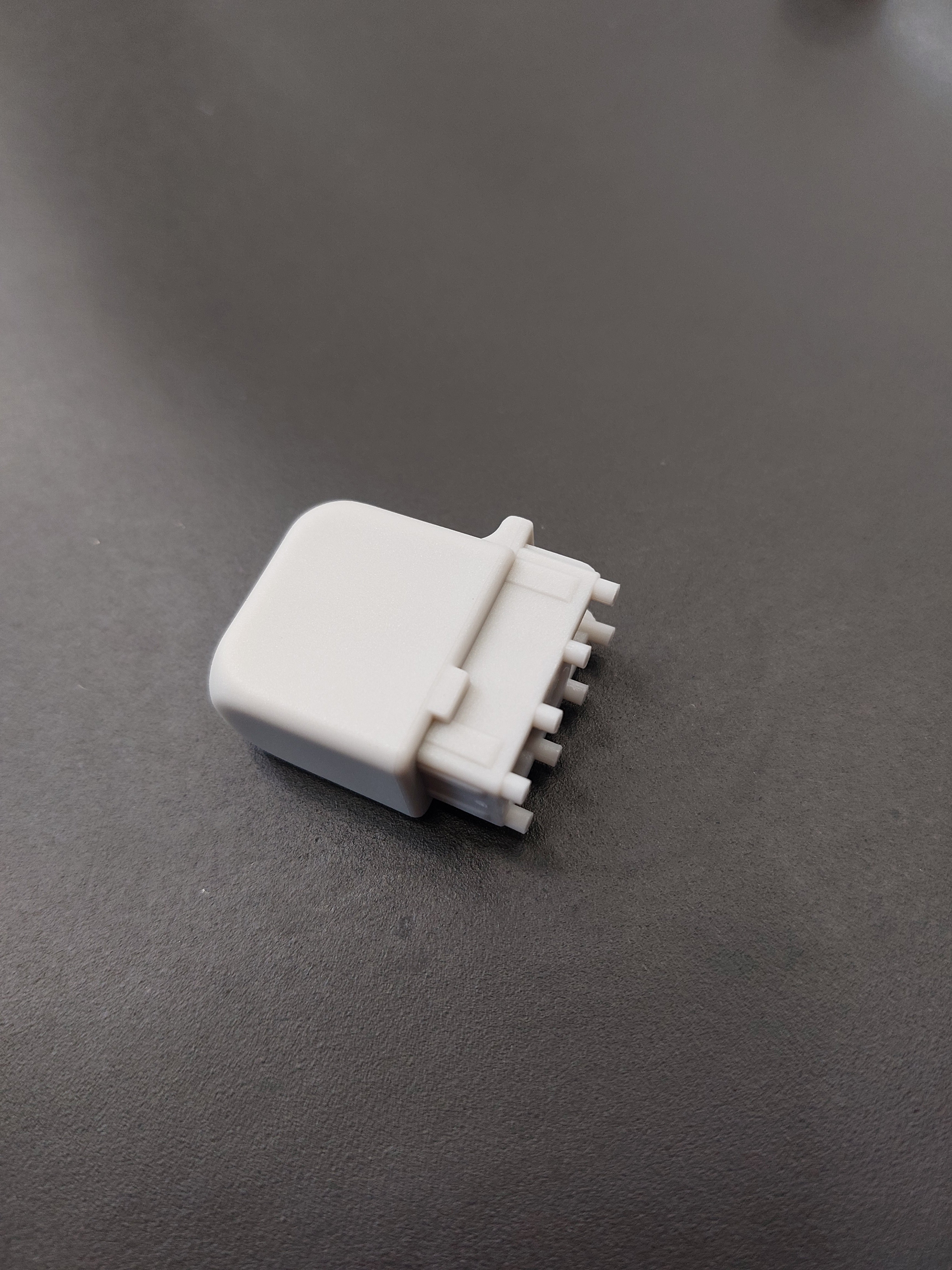

End cap on telescopic shaft for end of spoke, long version, fixation with screw, (since 2017 / 2018) plastic in grey, 40 x 20 mm, length 39 mm, for ALBATROS.

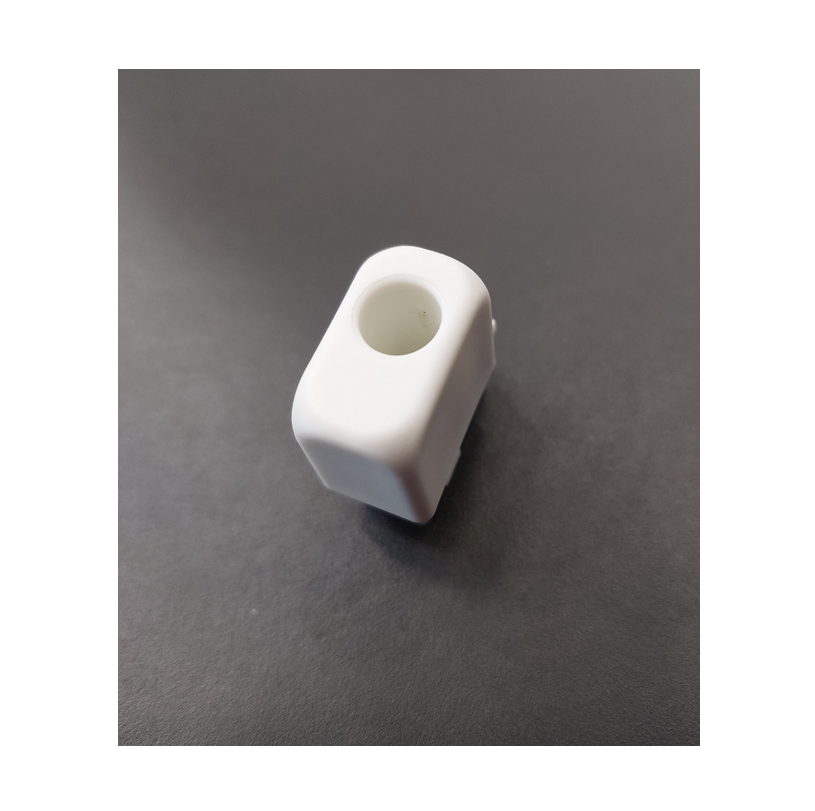

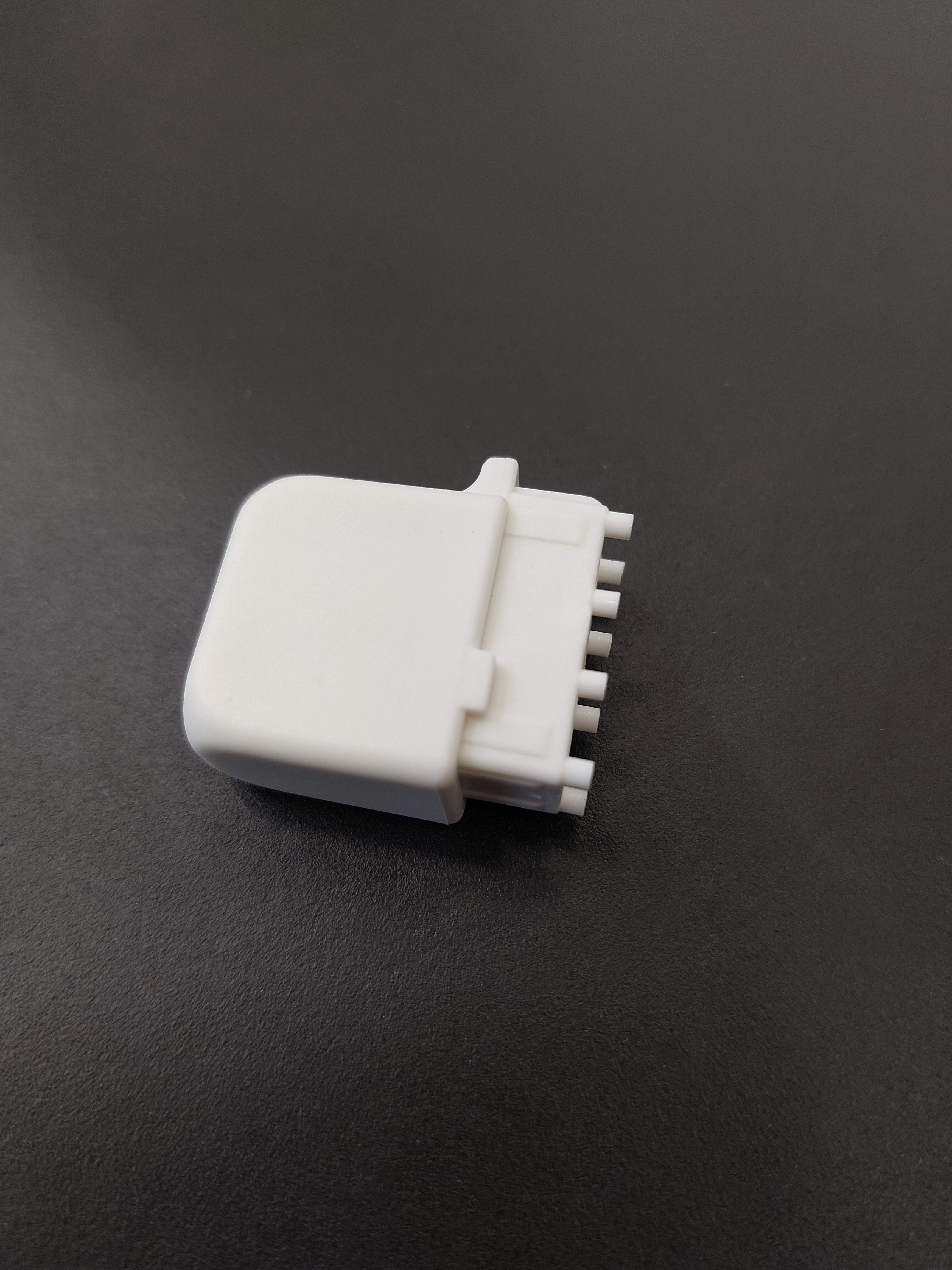

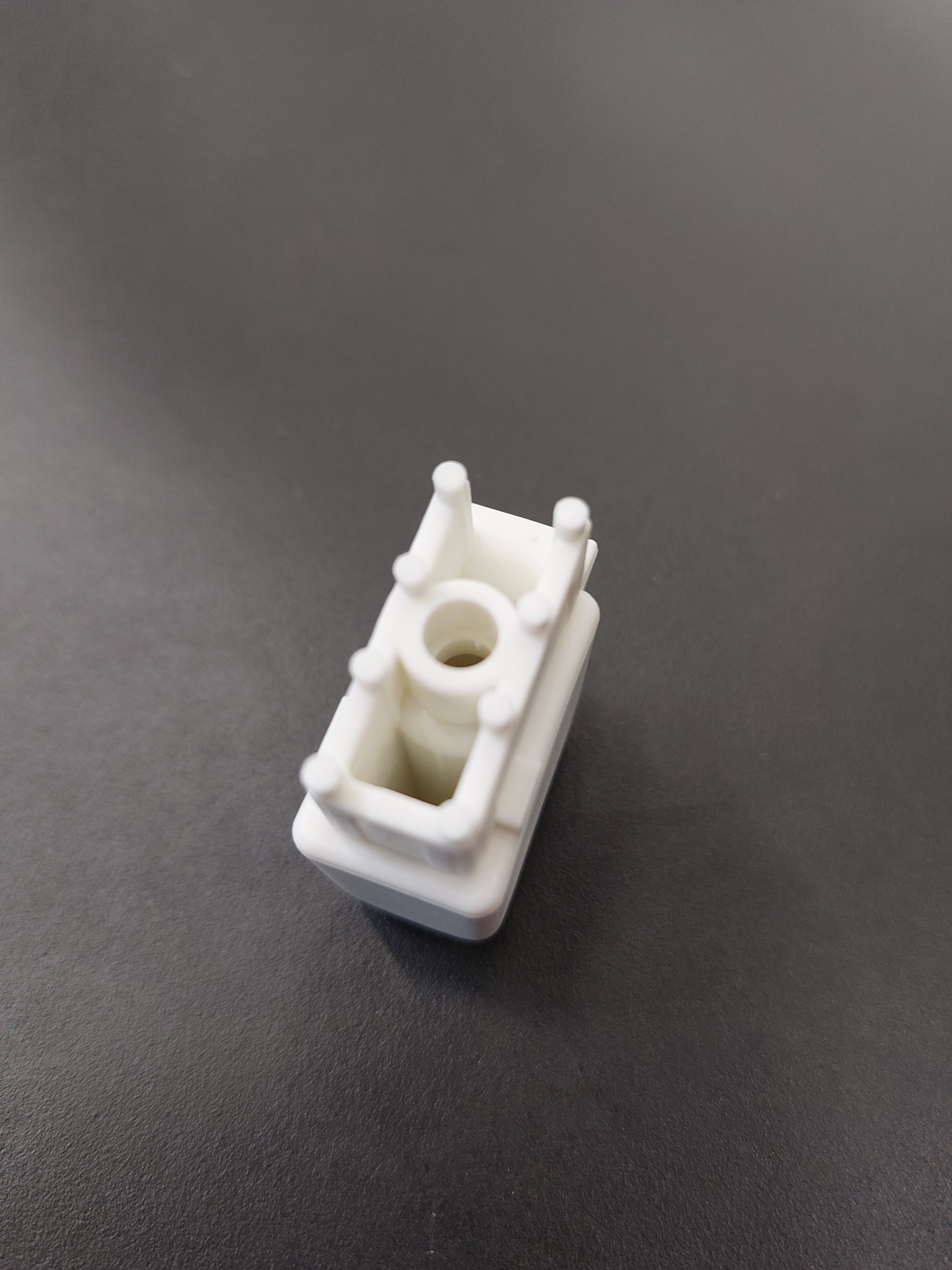

End cap on telescopic shaft for end of spoke, long version, fixation with screw, (since 2017 / 201), plastic in white, 40 x 20 mm, length 39 mm, for ALBATROS.

Bolt with head ø 8 mm, on eye bolt on protective cap, stainless steel A2, outer Ø 10 mm, length 30 mm, for ALBATROS.

Bolt with head ø 8 mm, for spoke on upper distribution flange, stainless steel A2, outer Ø 10 mm, length 34 mm, fits for ALBATROS.

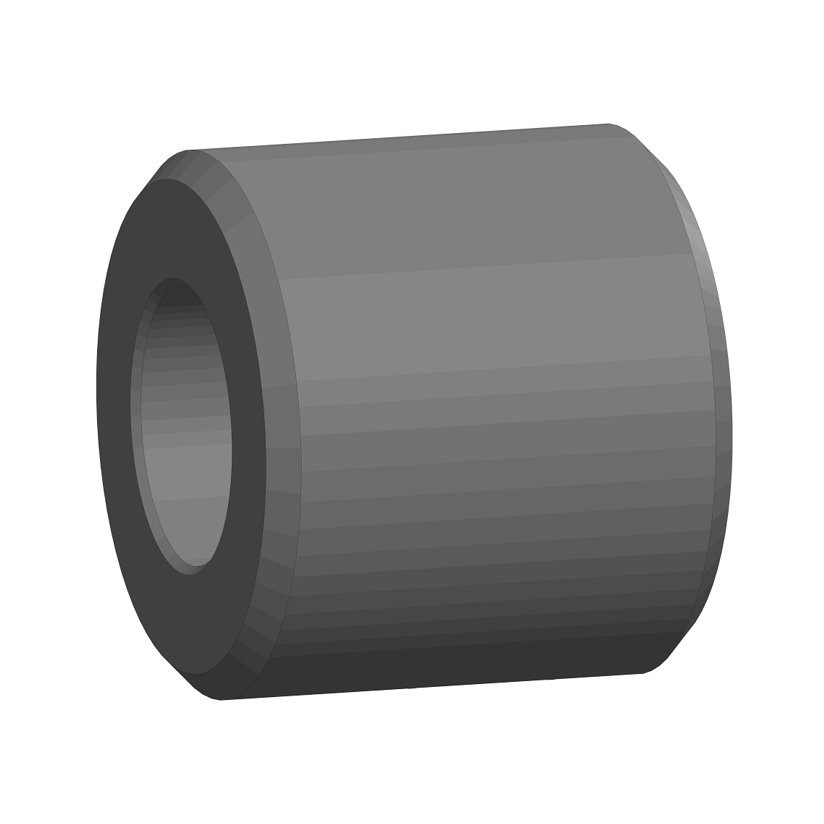

Spacer for eye bolt, galvanised, outer ø 20 mm, length 18 mm, fits for ALBATROS.

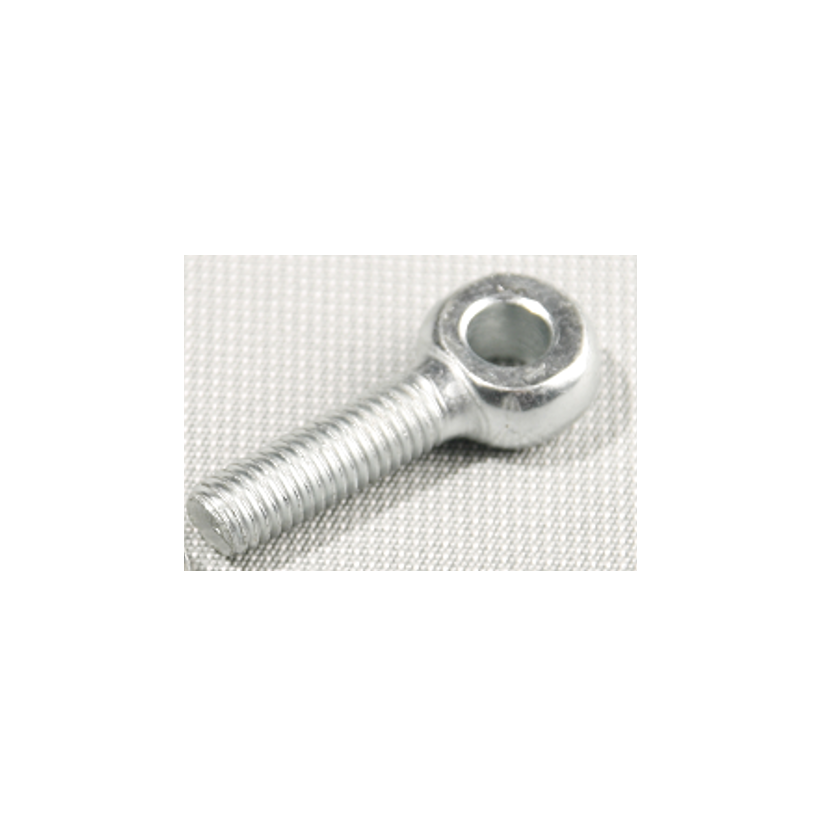

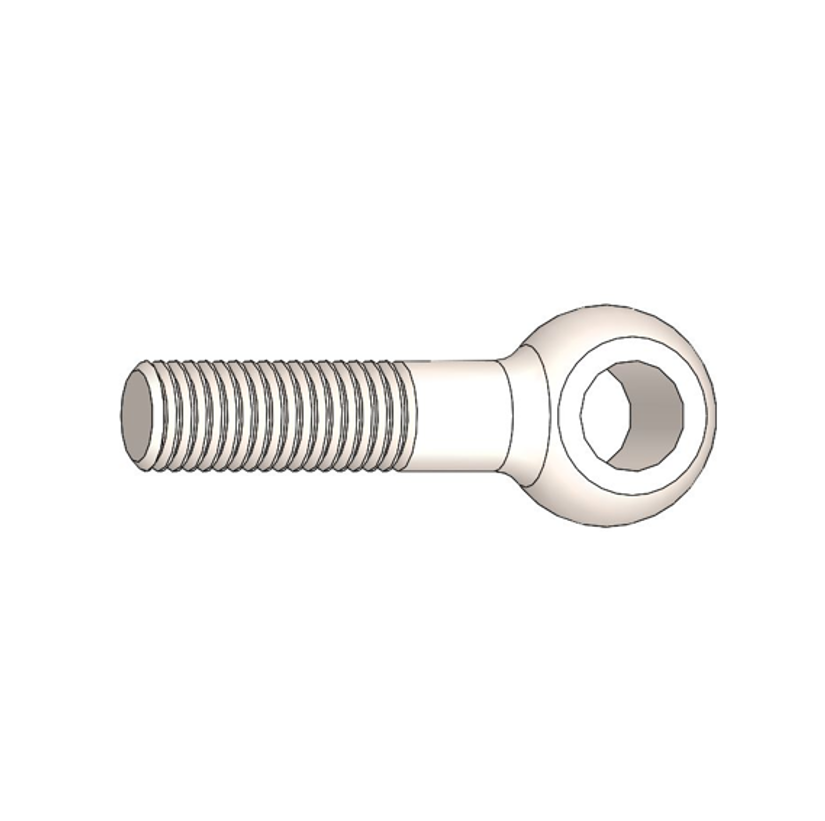

Eye bolt, galvanised, M10 x 52 mm.

standard parts "Paket 13"
