Schattello – Spare Parts

Cover plug, black, outer size 25 x 10 mm, as cover on cable duct for SCHATTELLO with electrics.

Cover plug, grey, outer size 25 x 10 mm, as cover on cable duct for SCHATTELLO with electrics.

Cover plug, white, outer size 25 x 10 mm, as cover on cable duct for SCHATTELLO with electrics.

Cover plug, black outer size 30 x 15 mm - for spoke 35 x 20 mm on SCHATTELLO, old version used till 2010 - for square guide without electric on SCHATTELLO, for frame in RAL 8019 and 7016.

Cover plug, grey outer size 30 x 15 mm - for spoke 35 x 20 mm on SCHATTELLO, old version used till 2010 - for square guide without electric on SCHATTELLO, for frame in RAL 9006.

Cover plug, white outer size 30 x 15 mm - for spoke 35 x 20 mm on SCHATTELLO, old version used till 2010 - for square guide without electric on SCHATTELLO, for frame in RAL 9010.

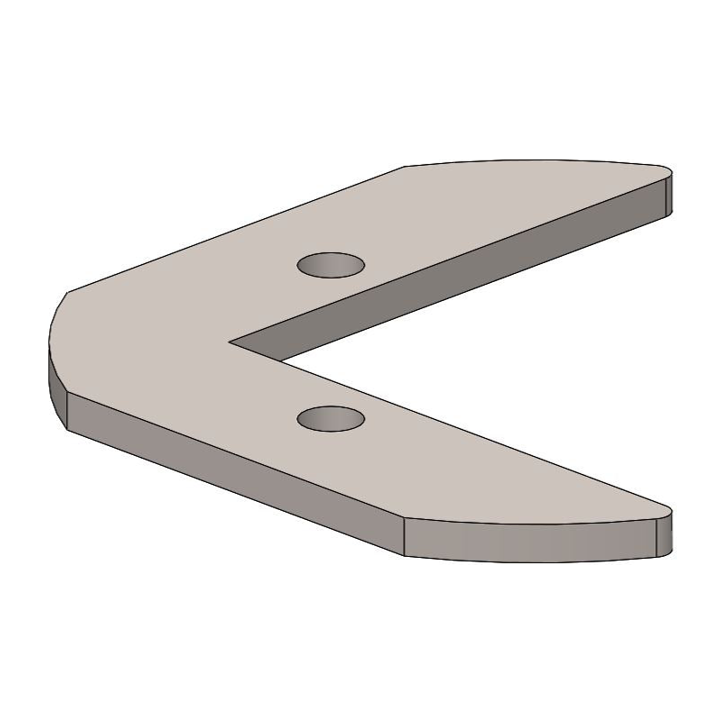

Reinforcing plate, with included double sided-tape, on square guide

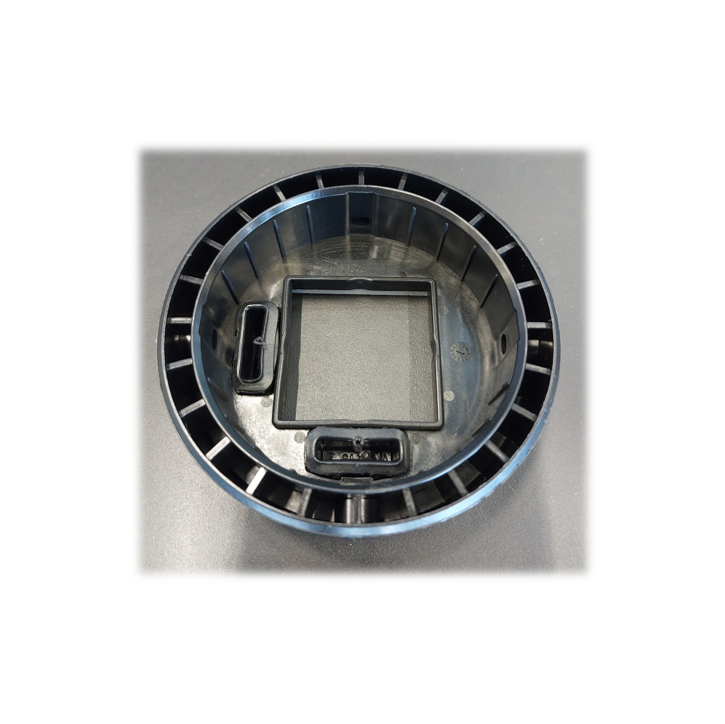

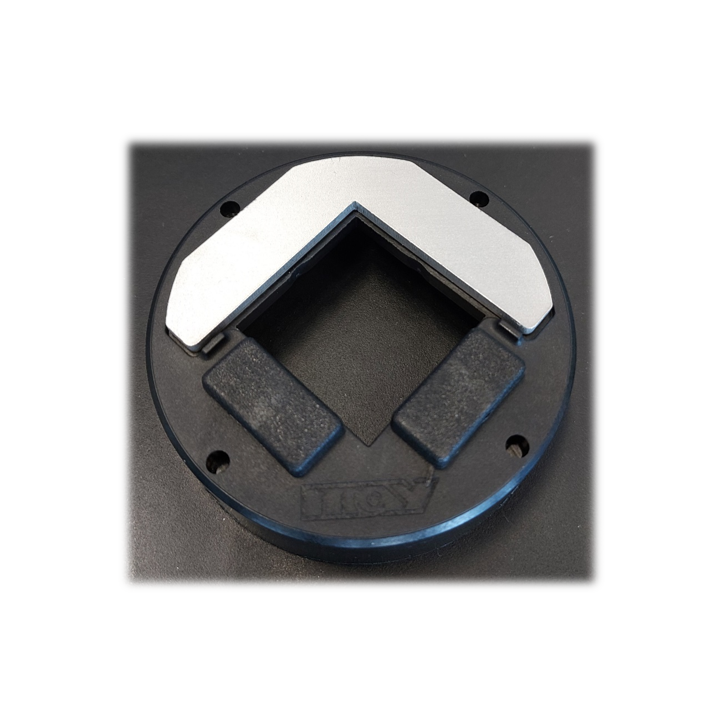

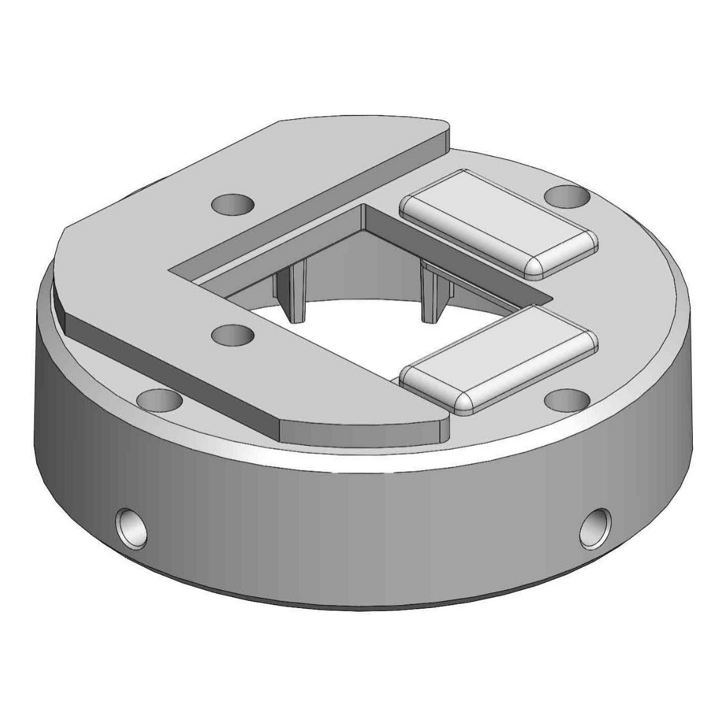

Square guide, (1x reinforcing plate, 2x cover plugs, 4x hexagon socket set screws), fits for frame in RAL 8019 and RAL 7016, black, outer ø 100 mm, inner ø fits for support pole ø 76 mm, fits for SCHATTELLO.

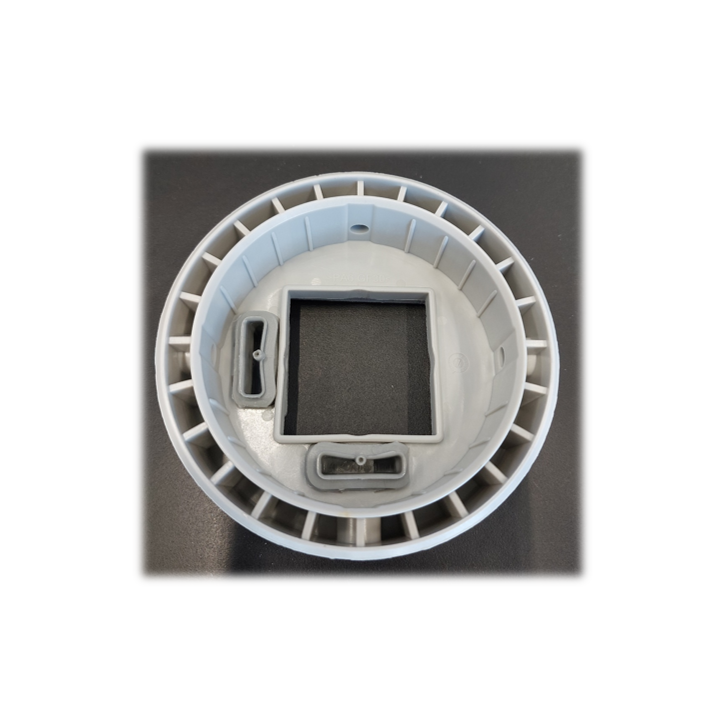

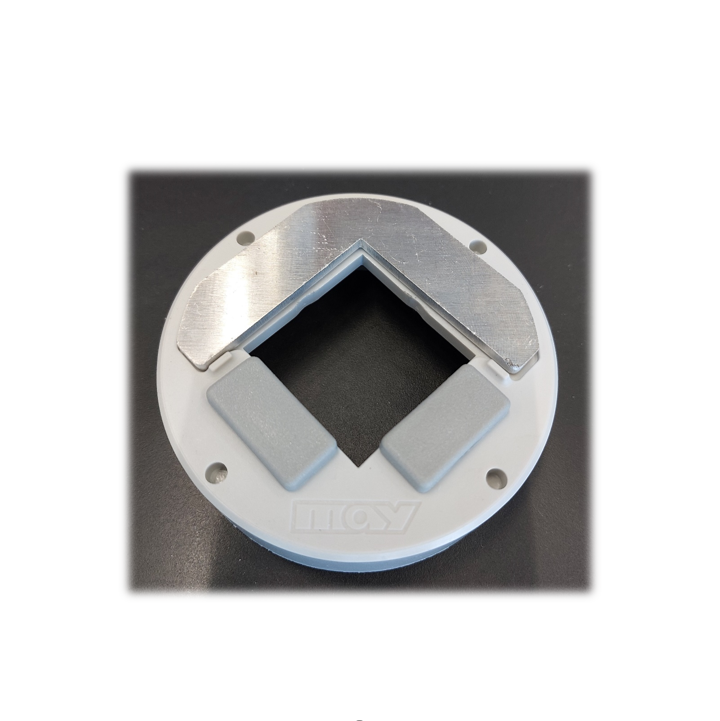

Square guide, (1x reinforcing plate, 2x cover plugs, 4x hexagon socket set screws), fits for frame in RAL 9006, grey, outer ø 100 mm, inner ø fits for support pole ø 76 mm, fits for SCHATTELLO.

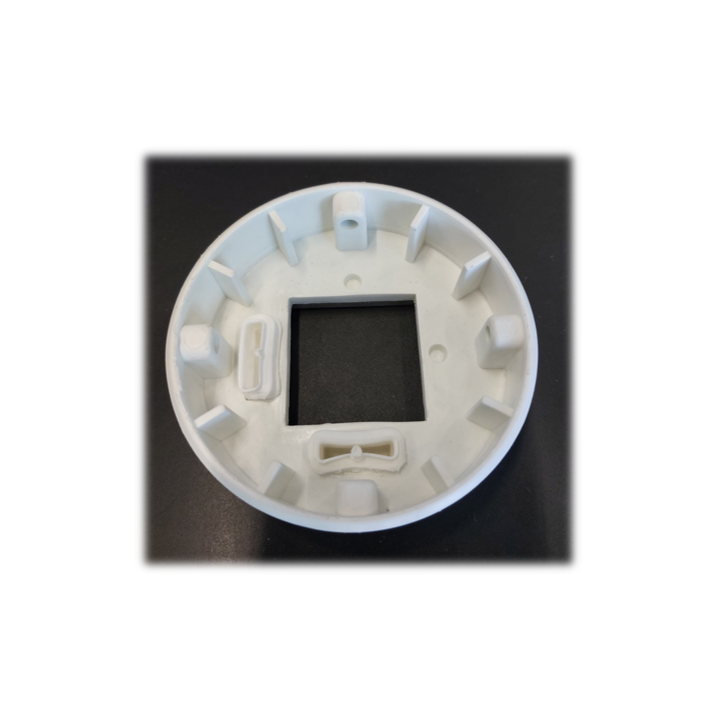

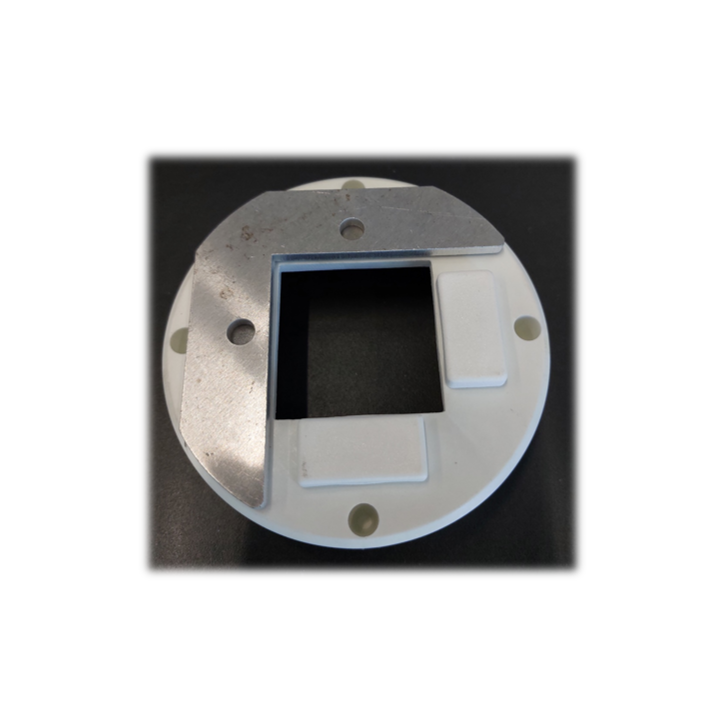

Square guide, (1x reinforcing plate, 2x cover plugs, 4x hexagon socket set screws), for frame in RAL 9010, white, outer ø 100 mm, inner ø fits for support pole ø 76 mm, fits for SCHATTELLO.

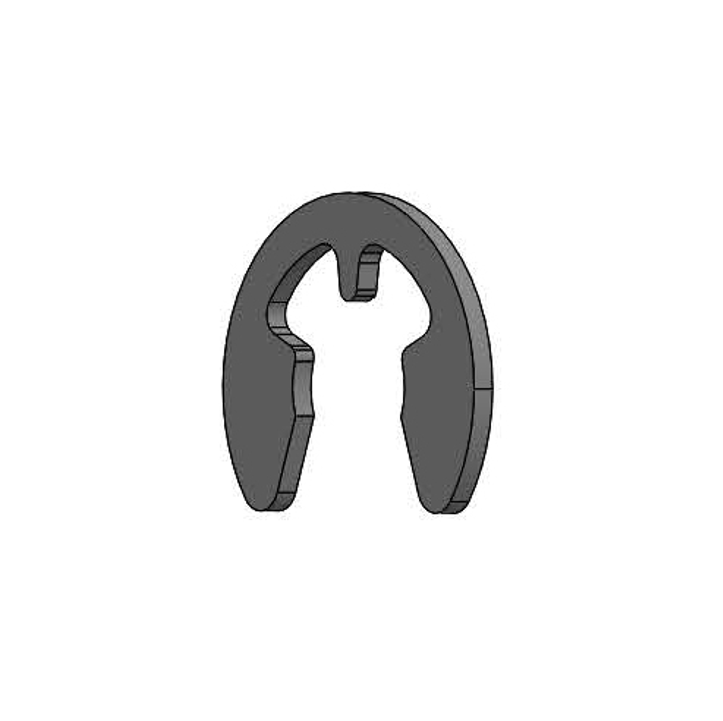

Retaining ring, for bolt with head, galvanised, inner ø 8 mm, for bolts Ø 8 mm, 1 piece per spoke necessary, mountable without circlips pliers, for SCHATTELLO/ALBATROS.

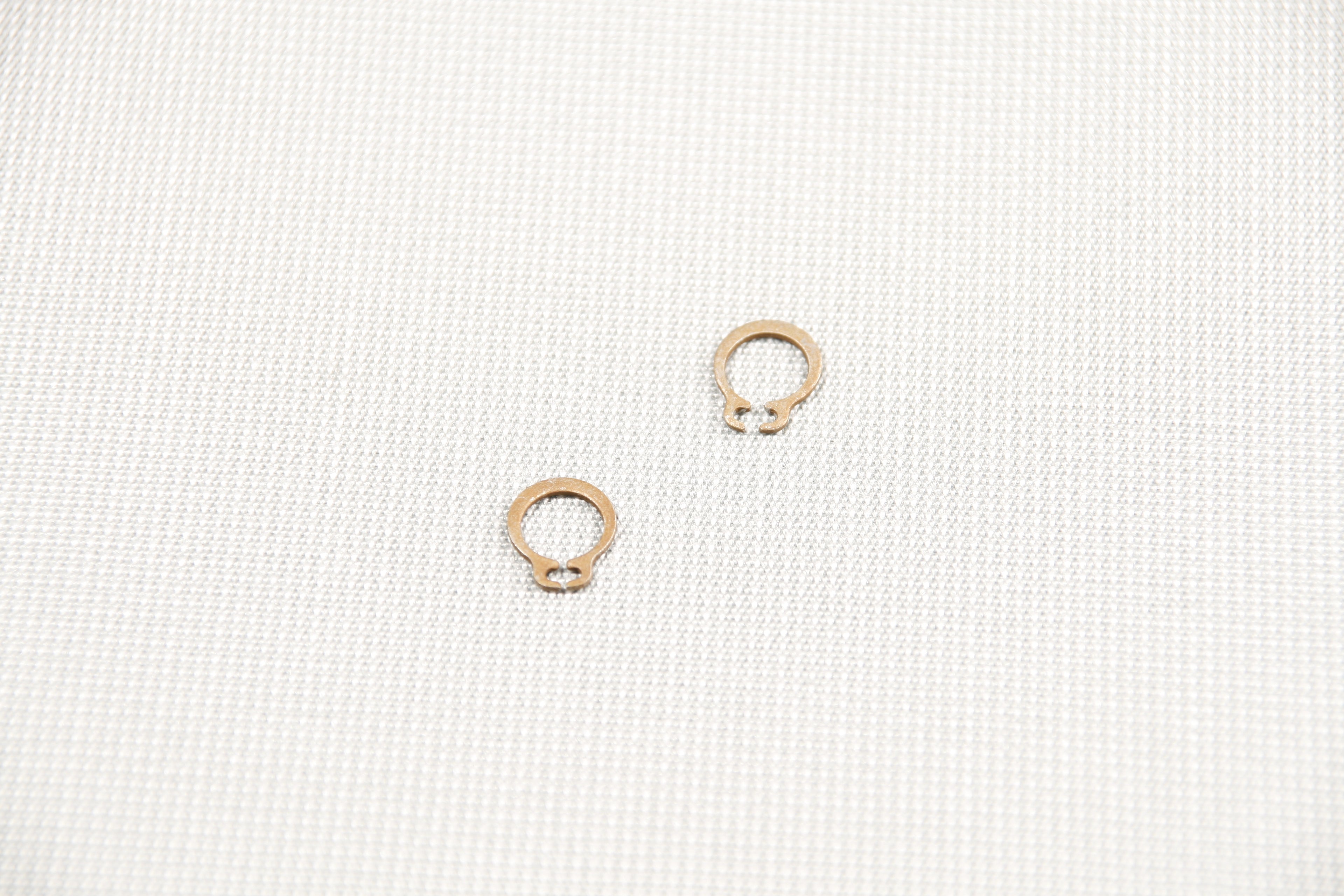

Retaining ring, for bolt with head, galvanised, inner ø 7 mm, for bolts Ø 8 mm, 1 piece per spoke necessary, mountable with circlip pliers, for SCHATTELLO/ALBATROS.

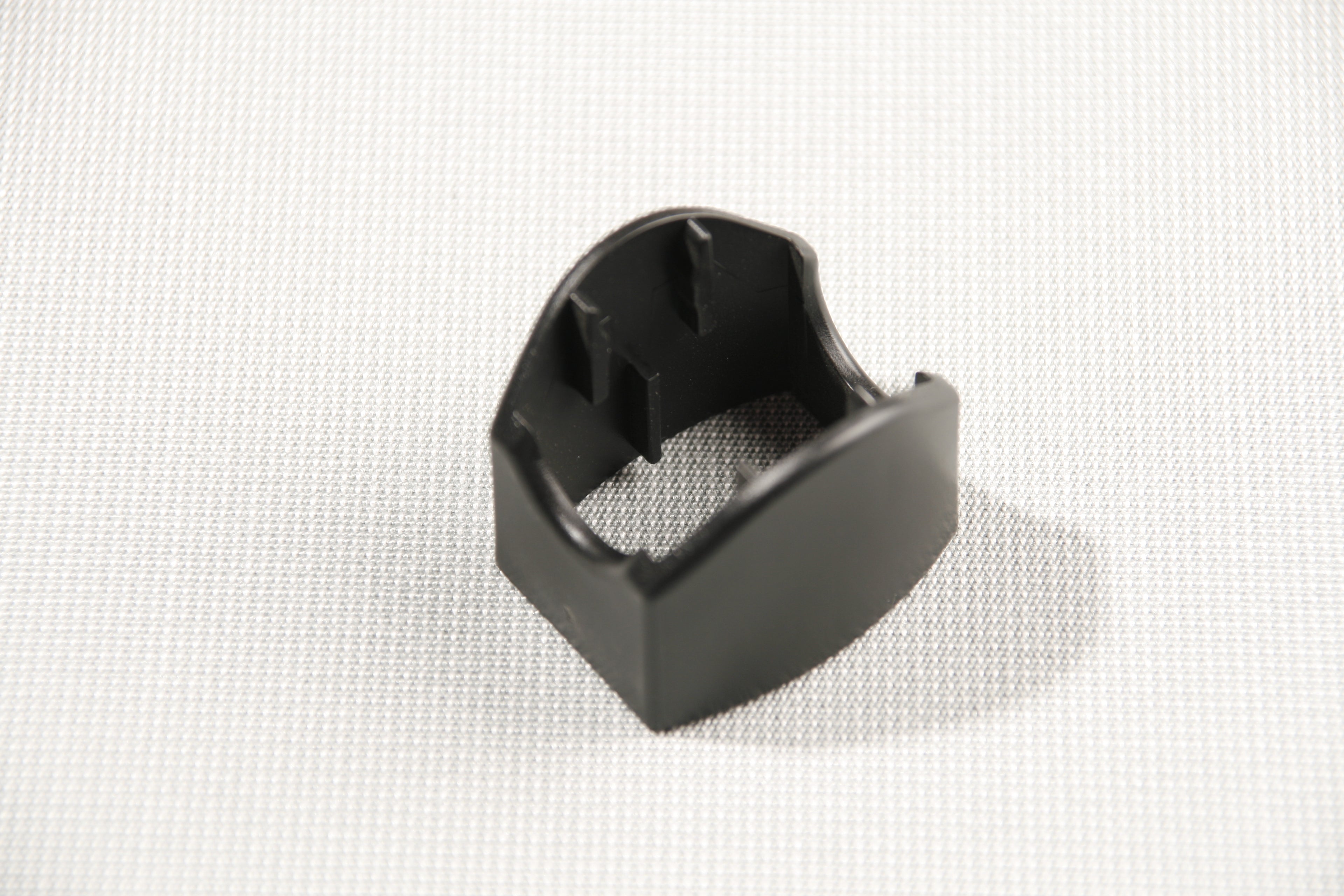

Protective cap, for bolt with head on support strut, for frame in RAL 8019 and 7016, plastic, colour black, (since approx. 2008), 31 x 37 mm, length 33 mm, for SCHATTELLO.

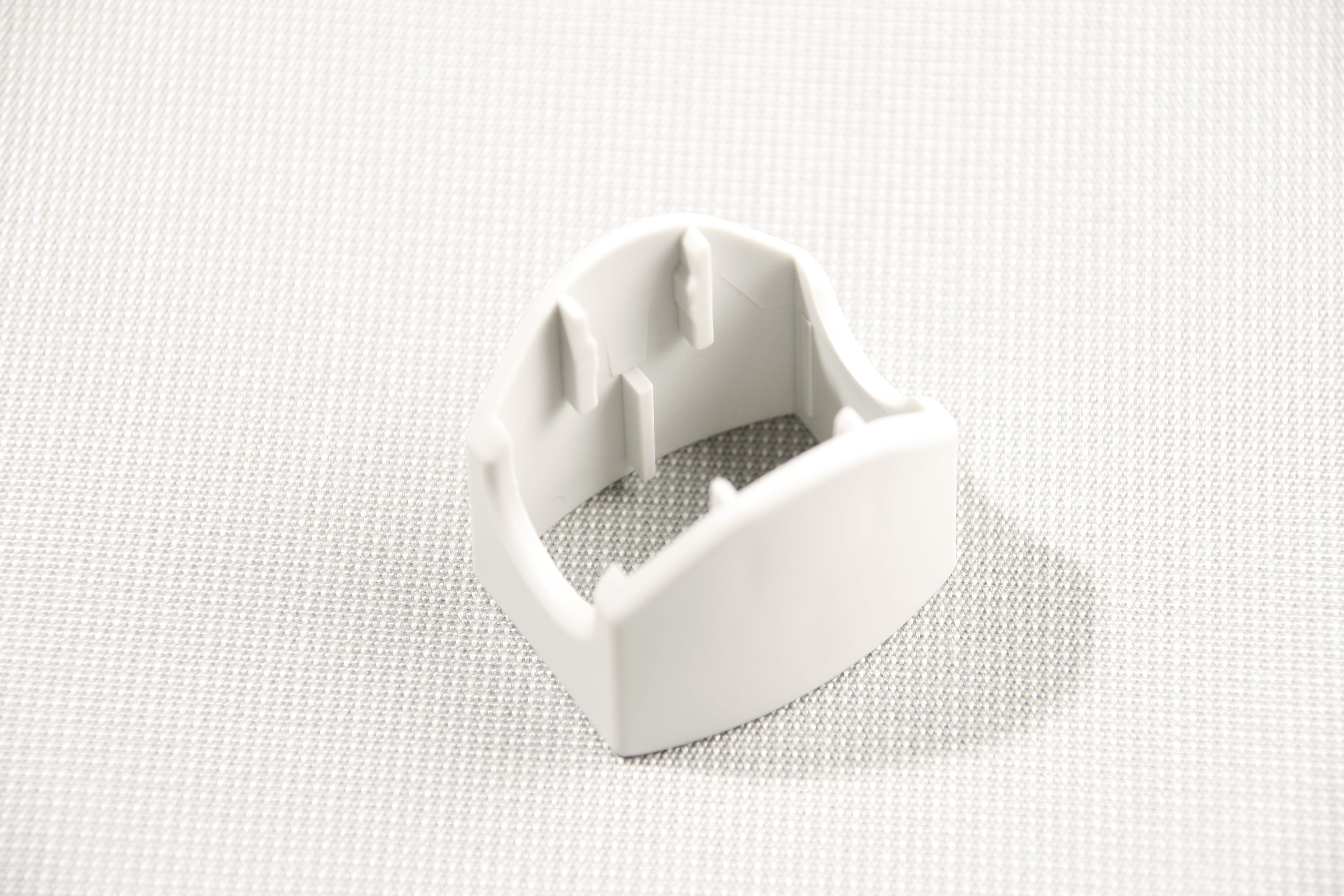

Protective cap, for bolt with head on support strut, for frame in RAL 9006, plastic, colour grey, (since approx. 2008), 31 x 37 mm, length 33 mm, for SCHATTELLO.

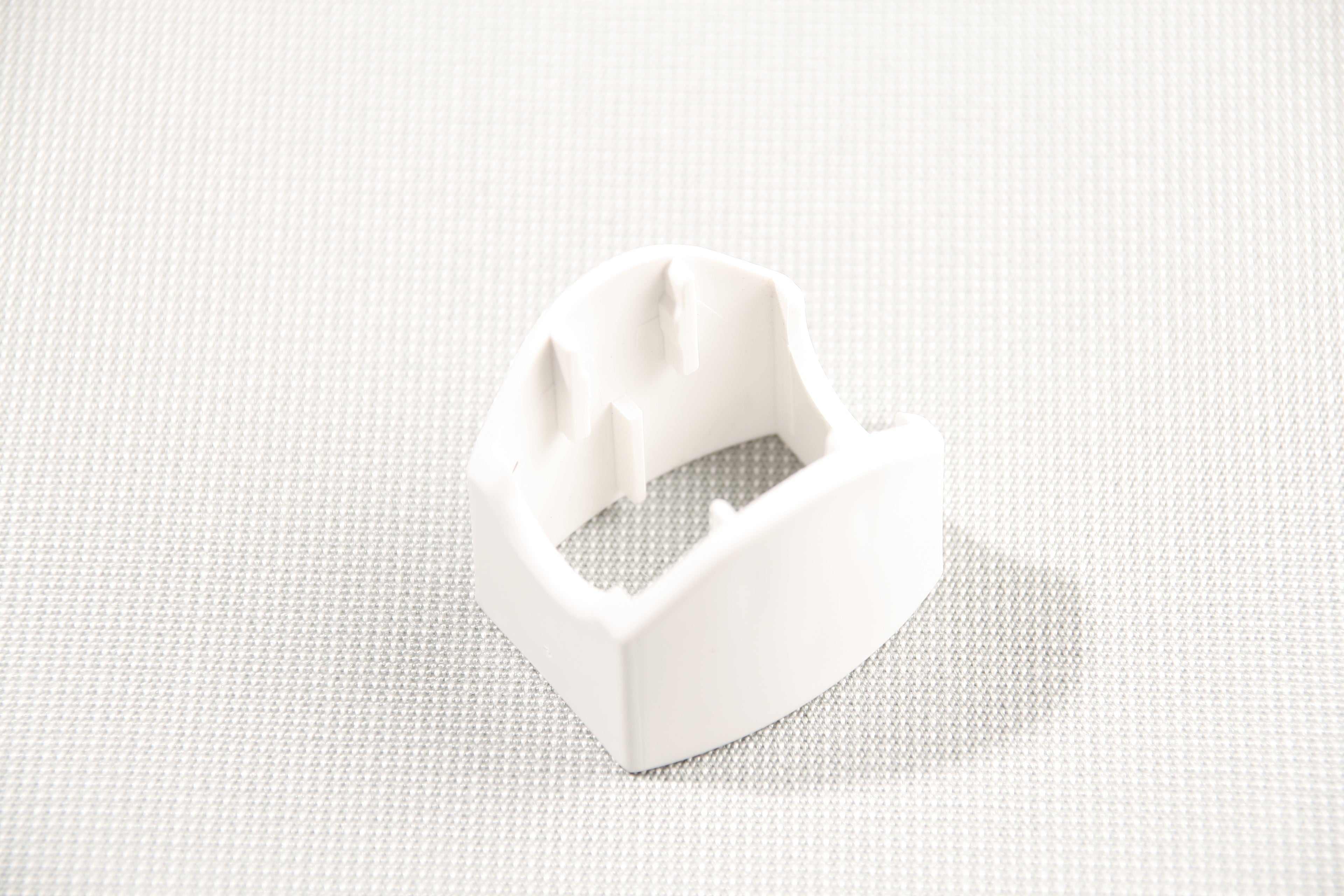

Protective cap, for bolt with head on support strut, for frame in RAL 9010, plastic, colour white, (since approx. 2008), 31 x 37 mm, length 33 mm, for SCHATTELLO.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in black, (until approx. 2010), fits for aluminium teleskopic shaft, fits for spoke profile 30 x 20 mm, fits for SCHATTELLO.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in grey, (until approx. 2010), for aluminium teleskopic shaft, for spoke profile 30 x 20 mm, for SCHATTELLO.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in black, (until approx. 2010), for aluminium teleskopic shaft, for spoke profile 35 x 20 mm, for SCHATTELLO.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in grey, (until approx. 2010), for aluminium teleskopic shaft, for spoke profile 35 x 20 mm, for SCHATTELLO.

Cover plug on for spoke ending, with drill hole for canopy hook, colour in white, (until approx. 2010), for aluminium teleskopic shaft, for spoke profile 35 x 20 mm, for SCHATTELLO.

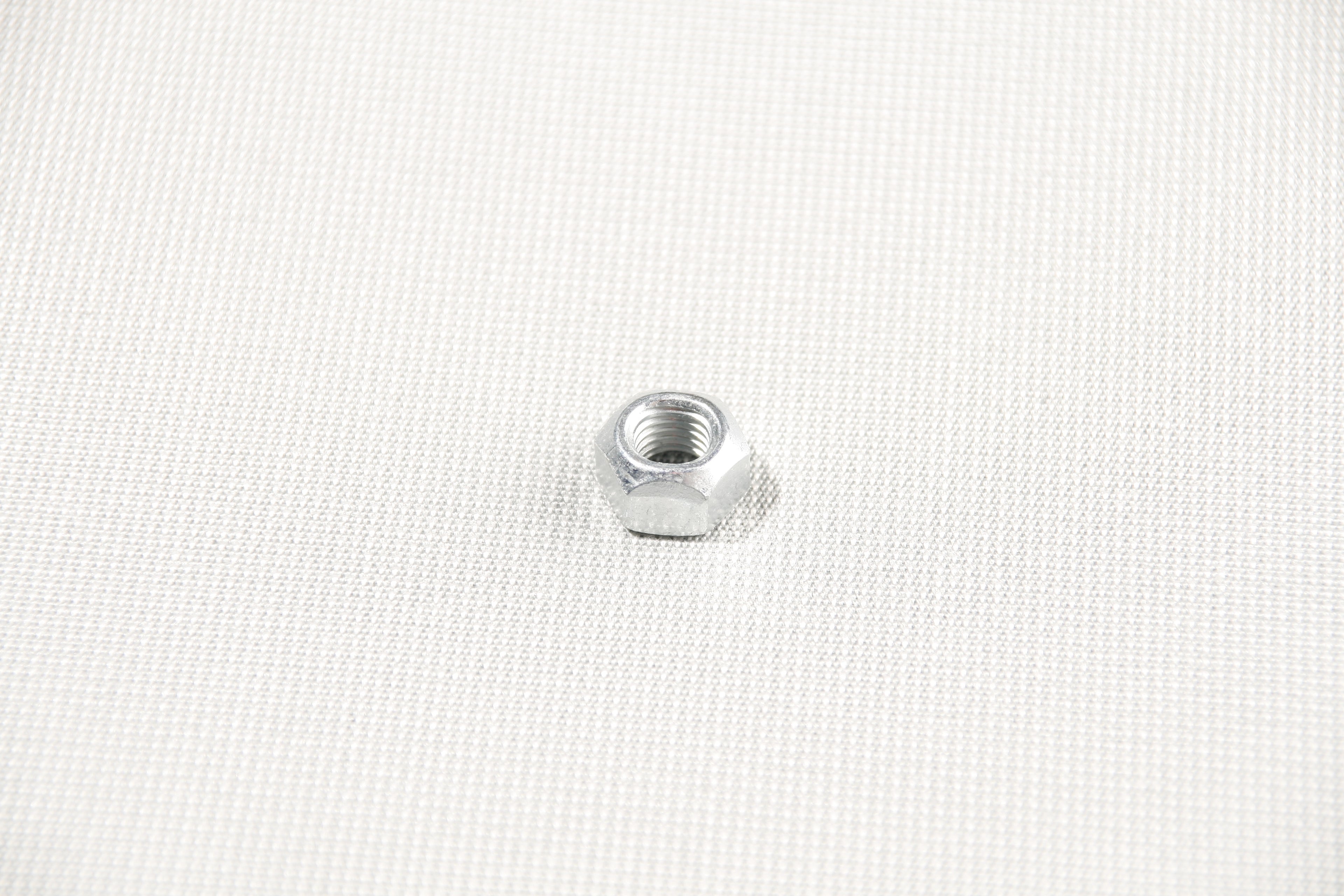

Hex nut, self-locking, galvanised, M10.

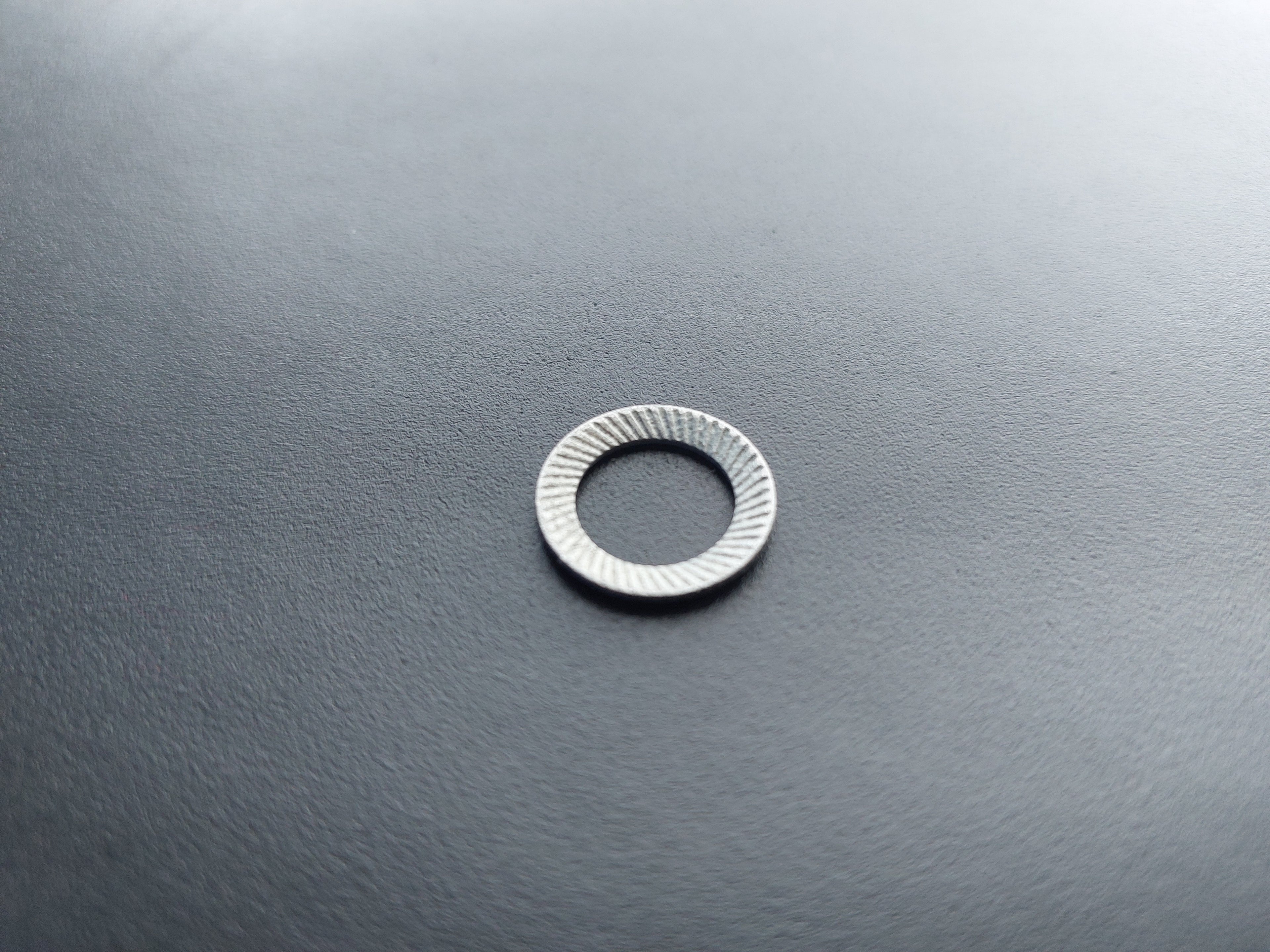

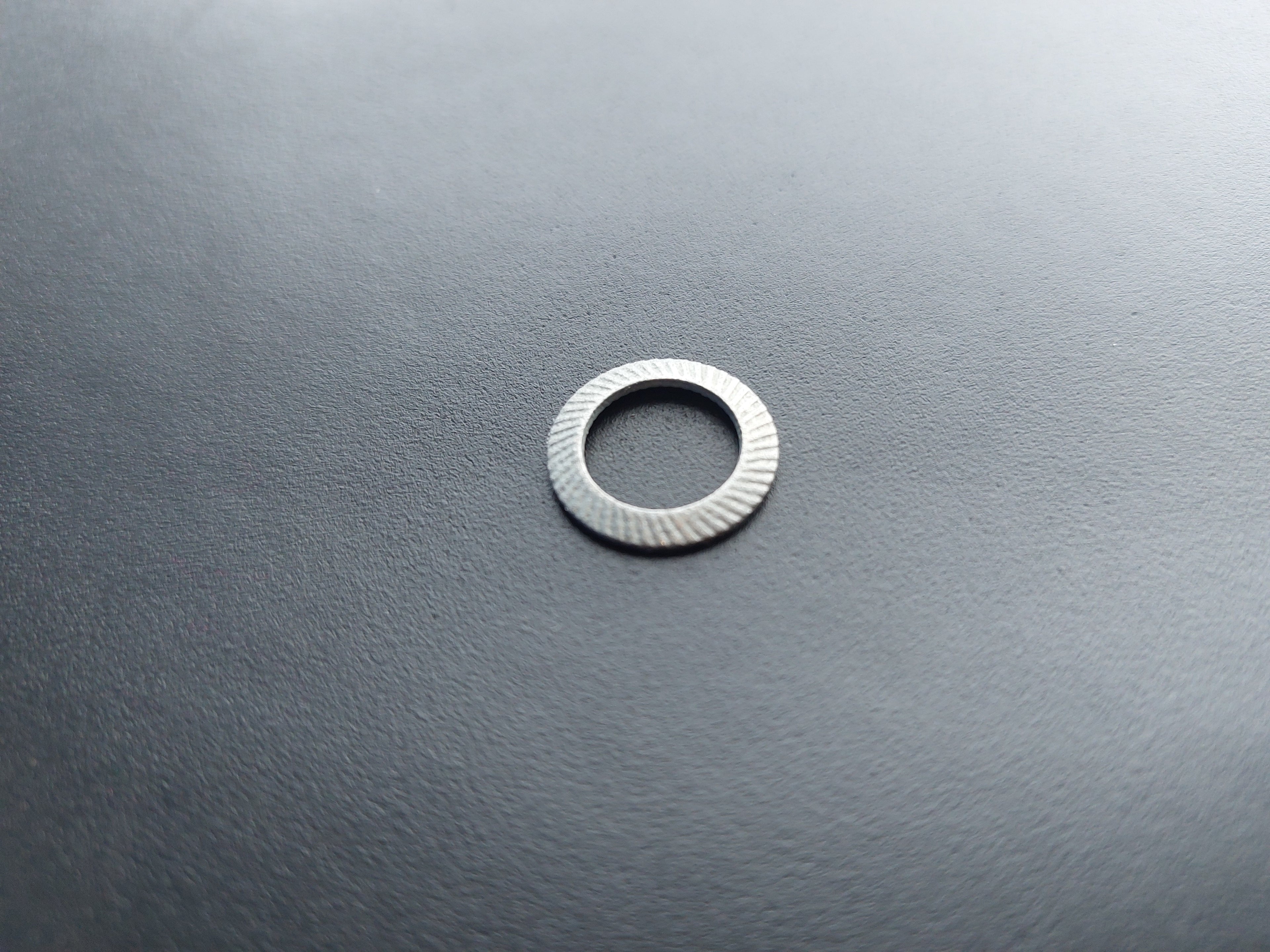

Lock washer, galvanised, outer ø 16 mm, inner ø 10.5 mm.

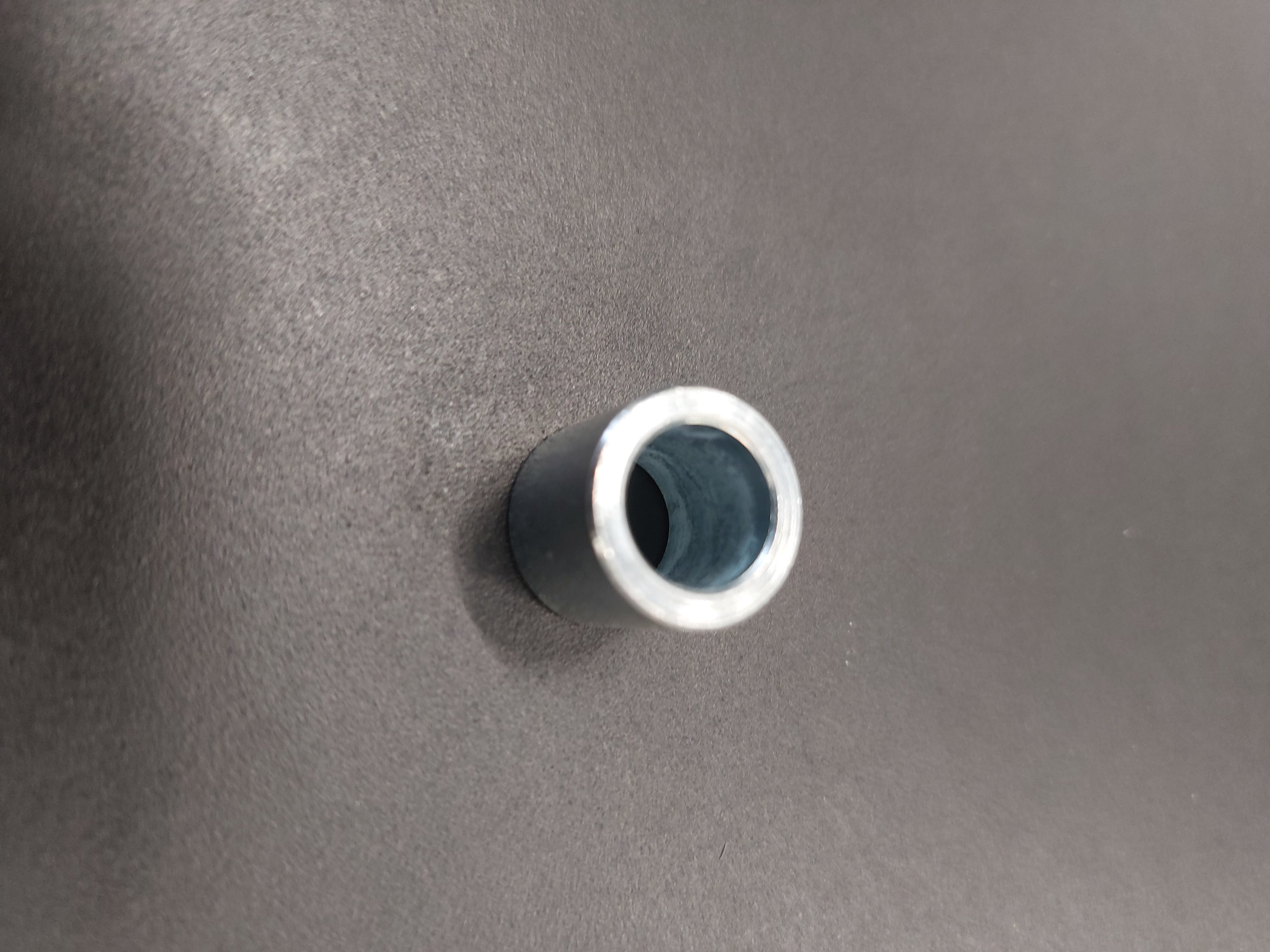

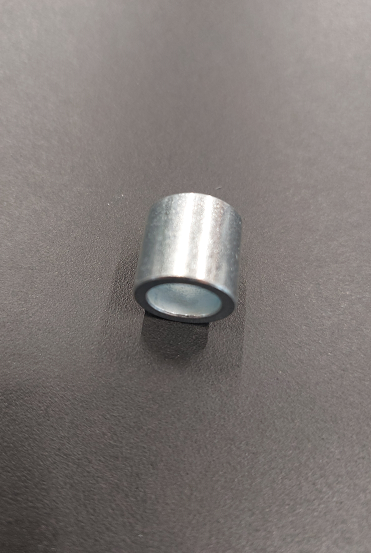

Spacer for eye bolt, galvanised, outer ø 15 mm, length 14 mm, for SCHATTELLO.
