Schattello – Spare Parts

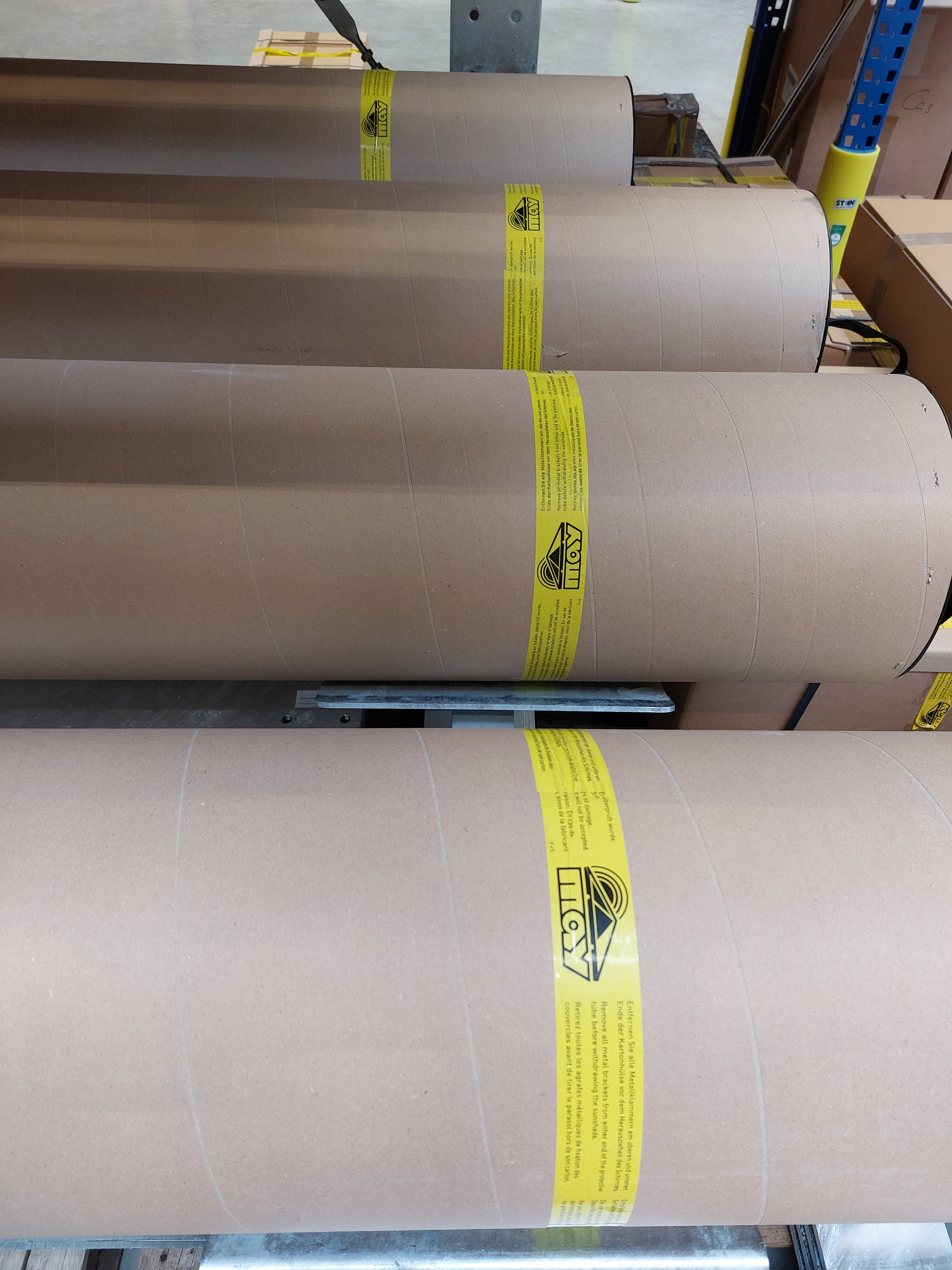

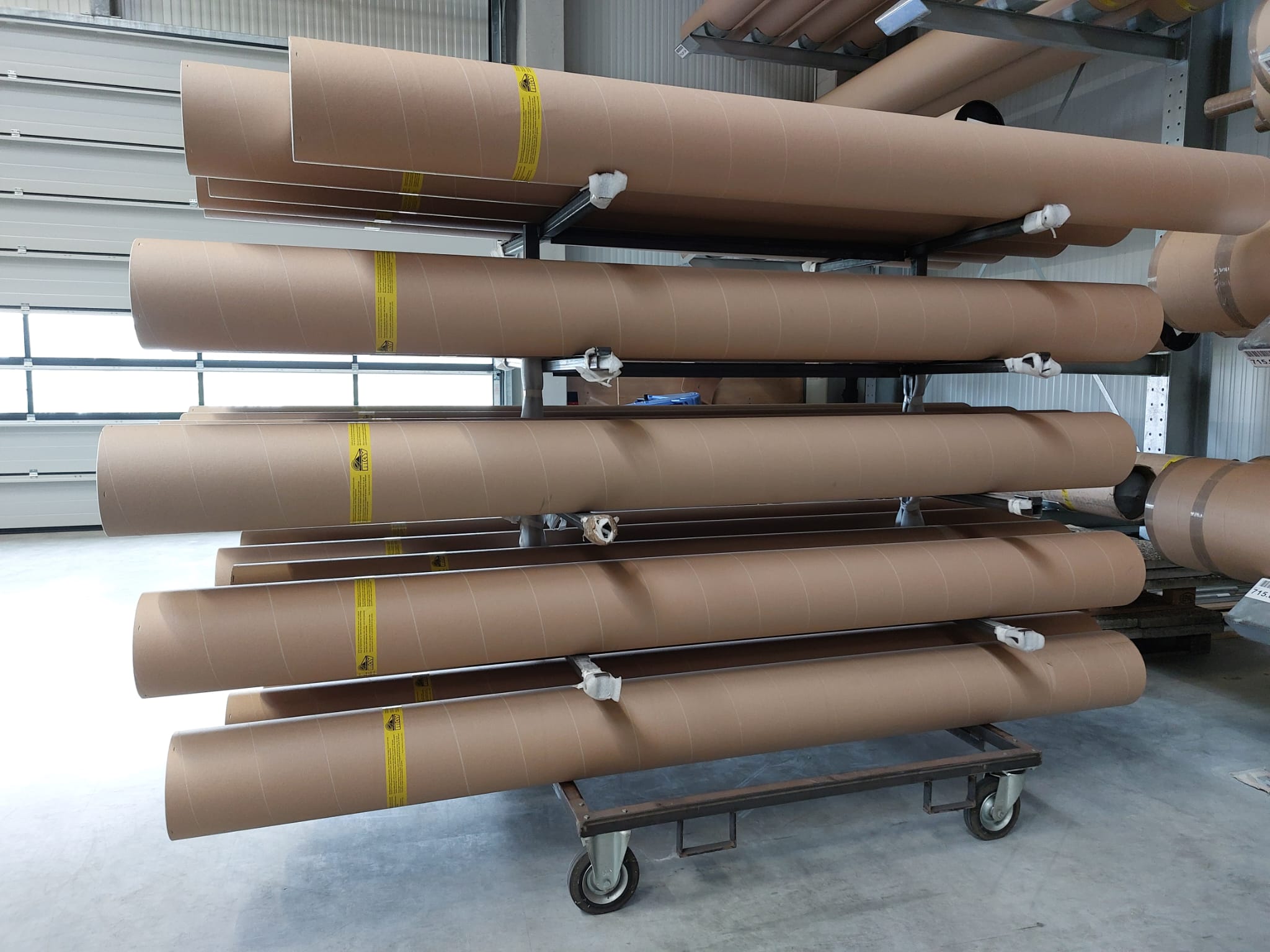

Cardboard sleeve for SCHATTELLO with 8 segments, including 2 end caps, 1x fixed with clamps, 1x fixed with tape inner Ø 33 cm, length 444 cm, thickness 0,5 cm.

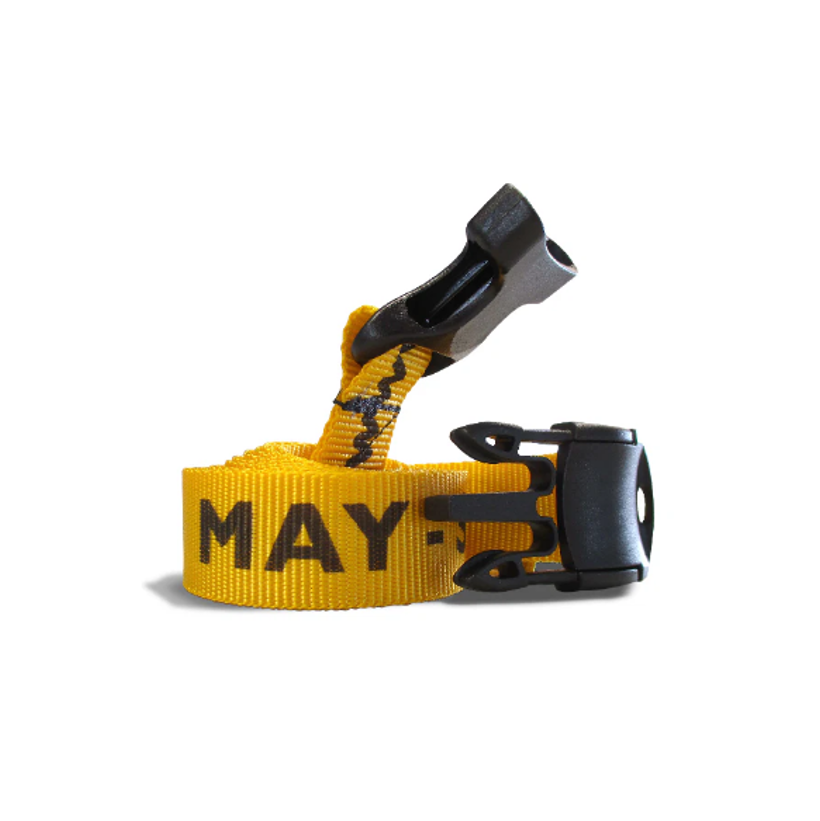

MAY-strap, for SCHATTELLO with infrared heaters, to secure the closed parasol, textile yellow / black, length 2 m.

MAY-strap for SCHATTELLO without infrared heaters, to secure the closed parasol, textile yellow / black, length 1.6 m.

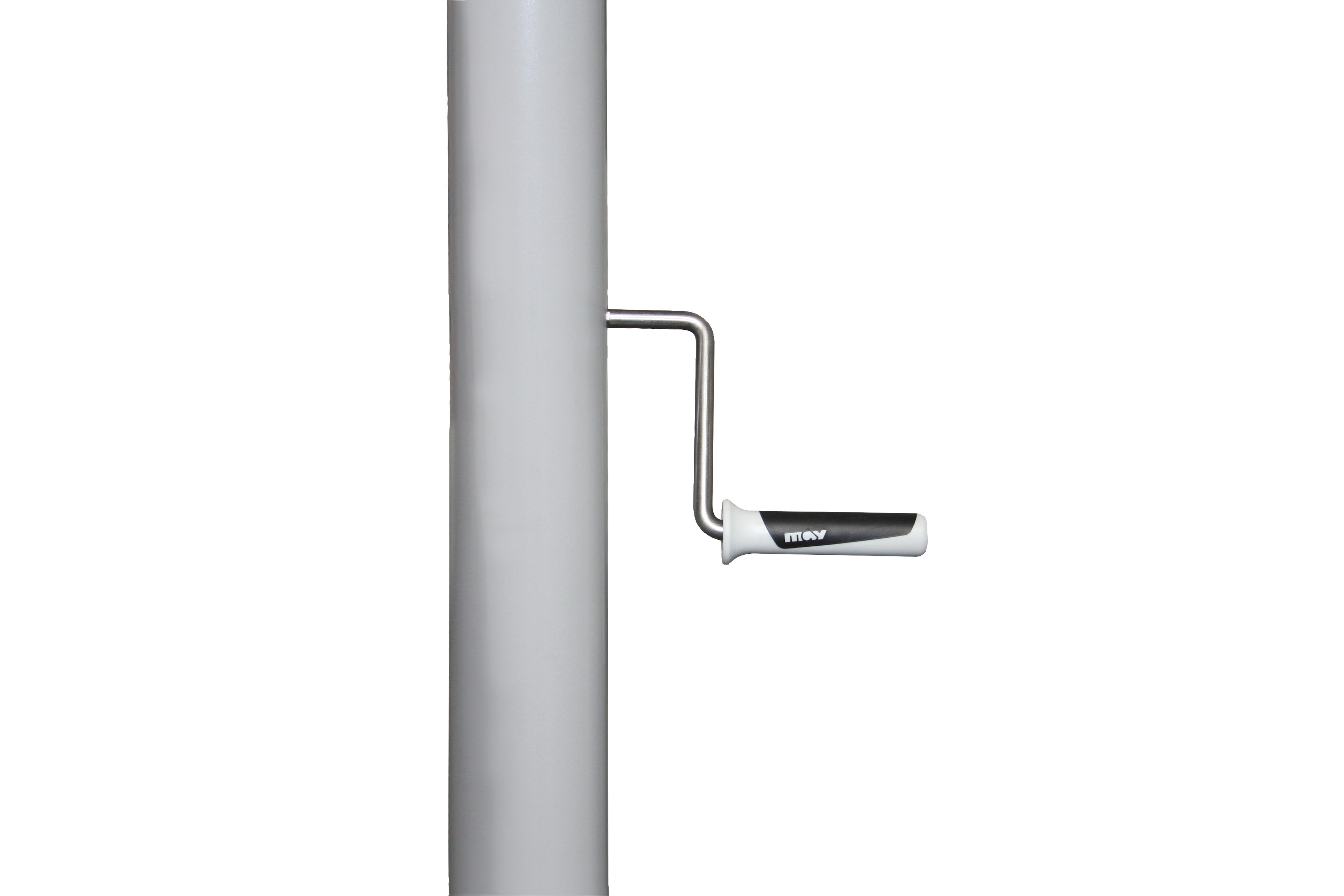

Crank, width across flat 9 mm, with MAY-logo on handle, for DACAPO/RIALTO/SCHATTELLO/ALBATROS.

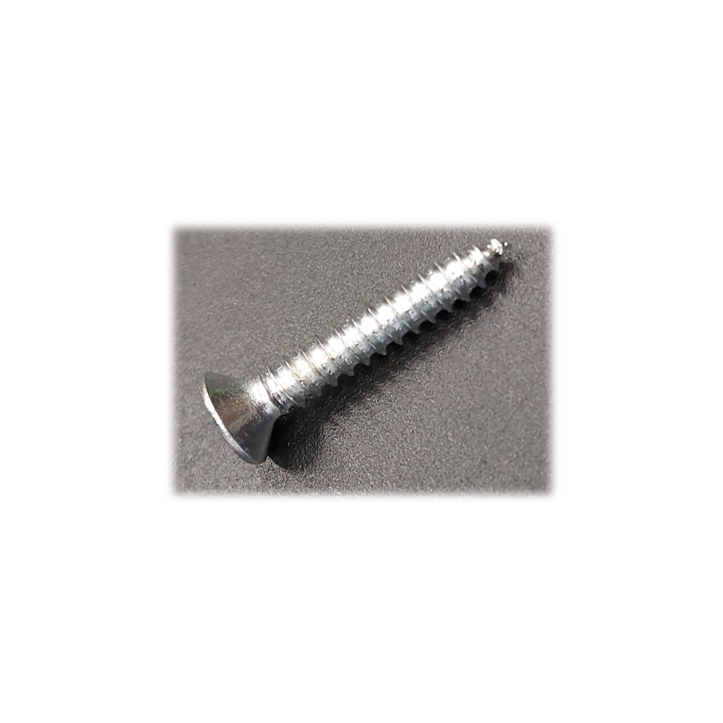

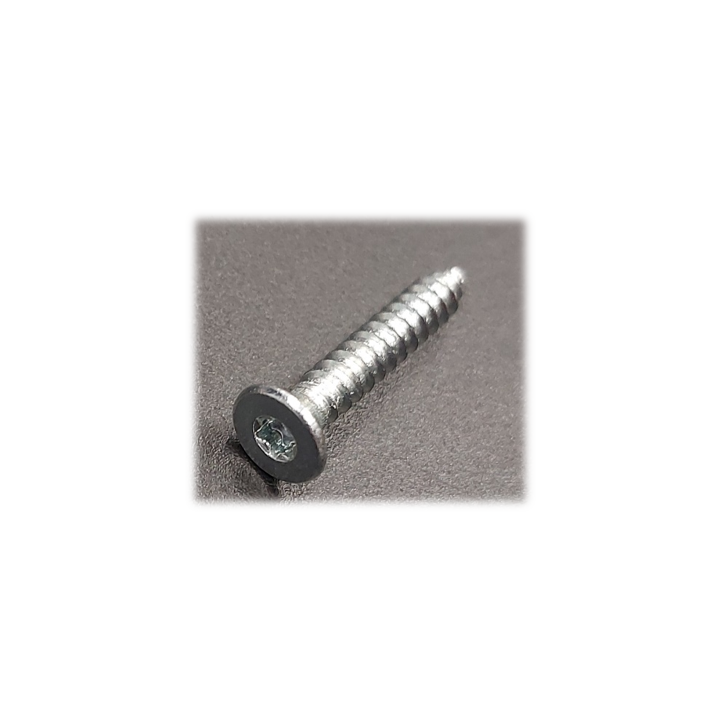

Countersunk tapping screw, Torx 15, steel ganvanized, outer Ø 3.9 mm, length 22 mm, galvanised.

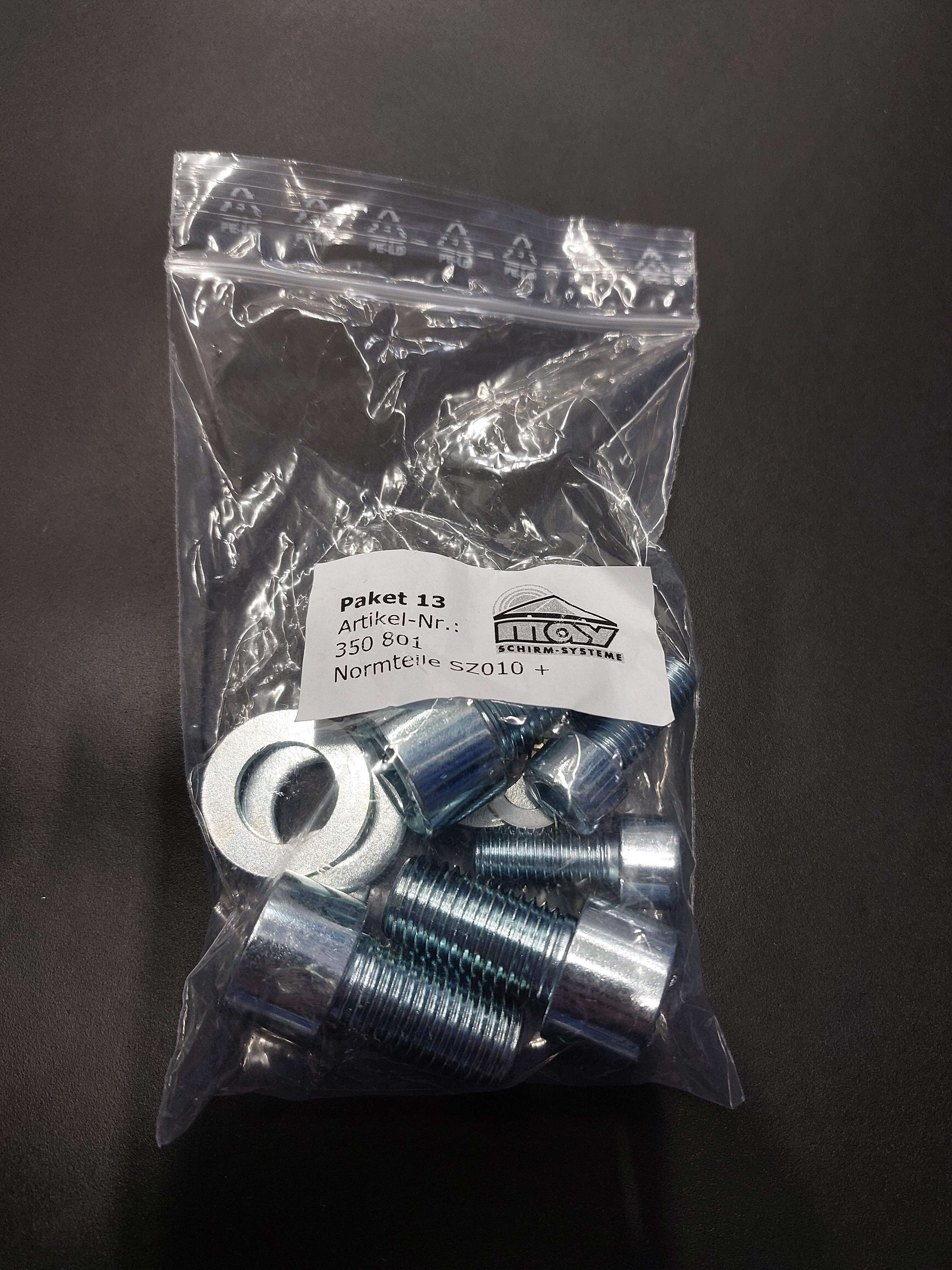

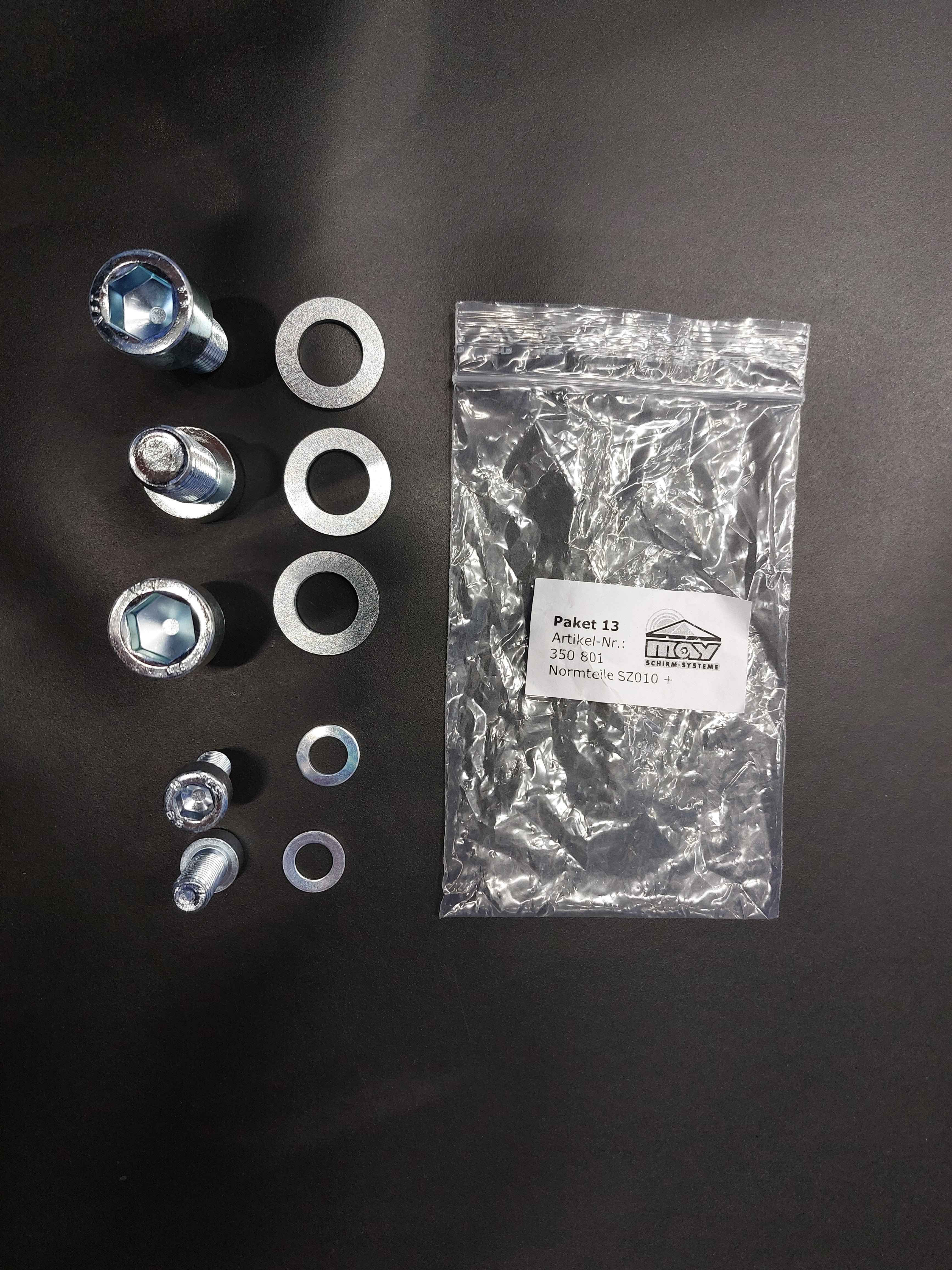

standard parts "Paket 13"

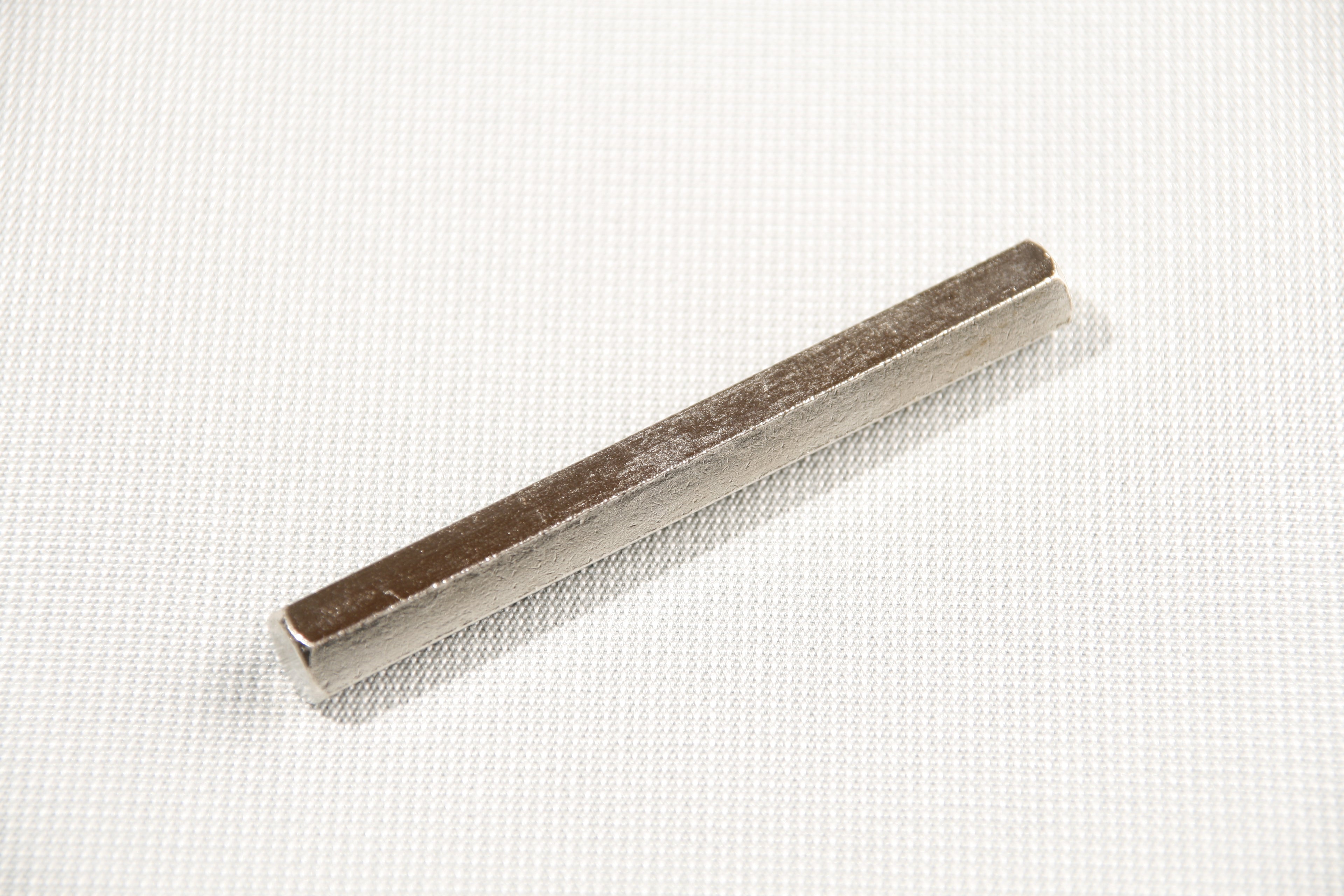

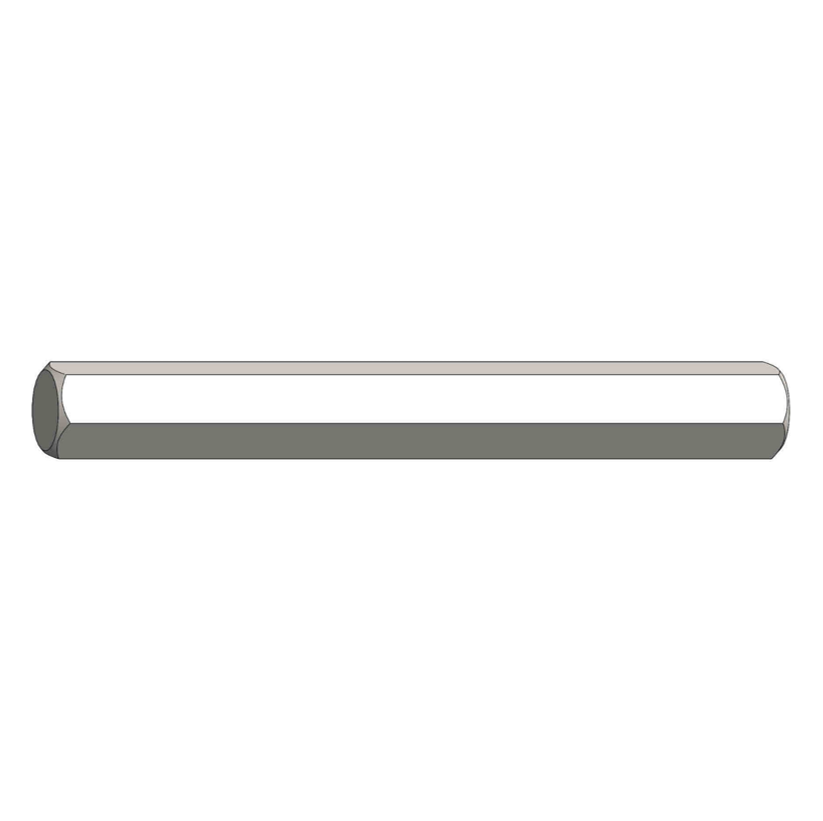

Hexagonal fitting, for battery-powered drill, for SCHATTELLO/ALBATROS, width across flat 9 mm.

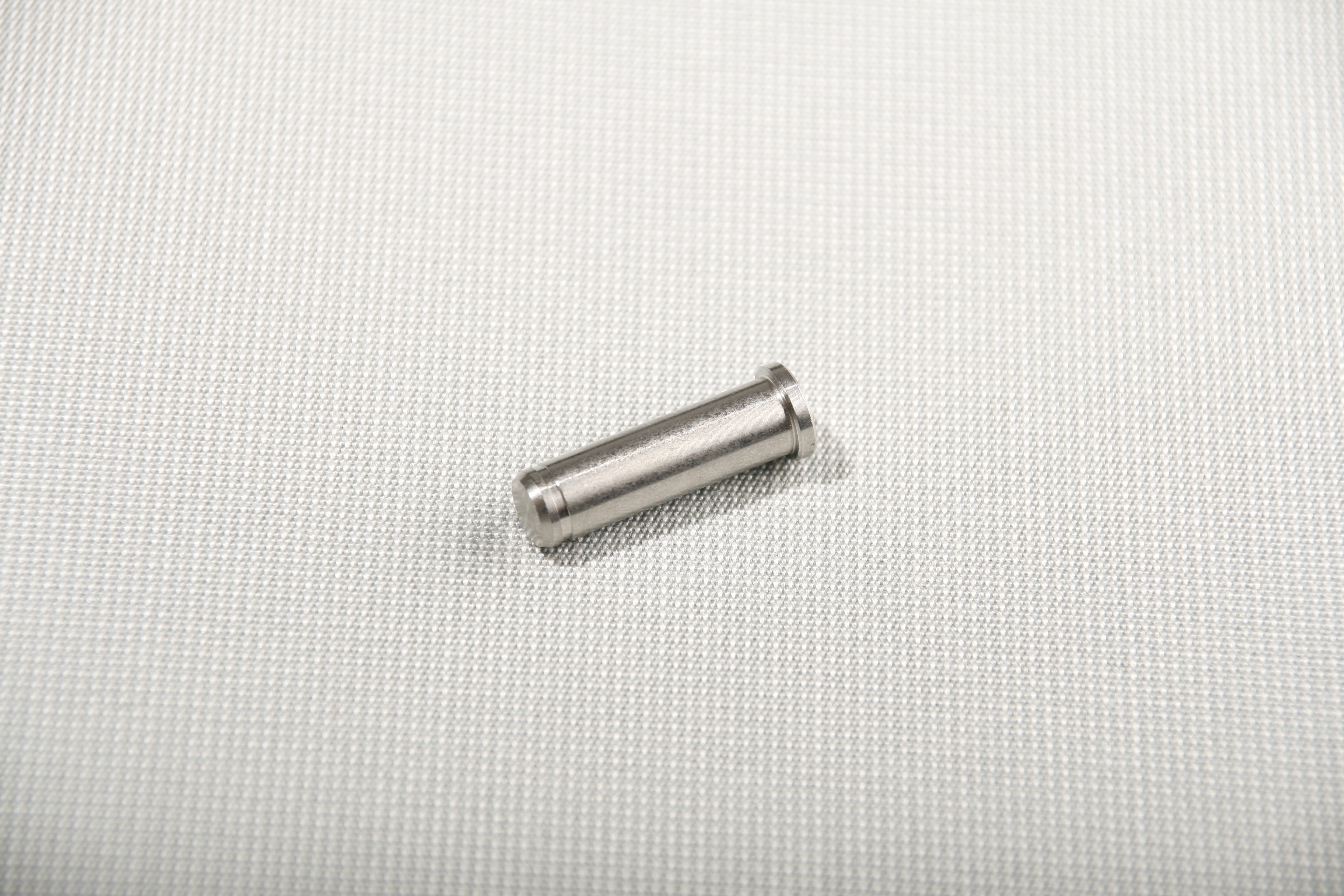

Bolt with head ø 8 mm, on eye bolt on protective cap, stainless steel A2, 1 piece per spoke neccessary, outer ø 10 mm, length 25.6 mm, for SCHATTELLO.

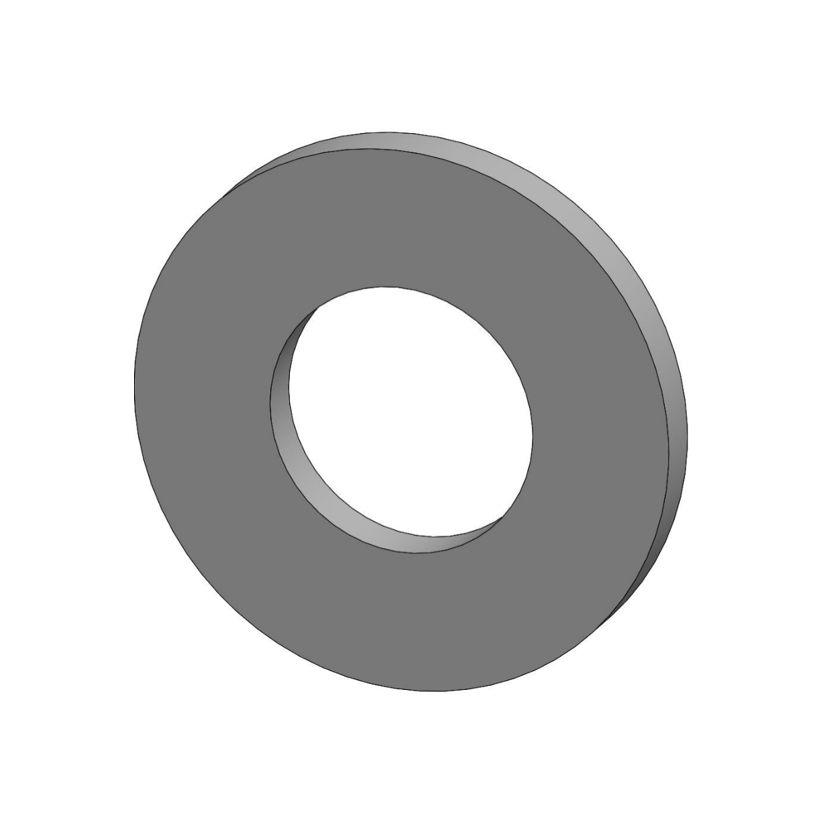

PVC washer for bolts, black, inner Ø 8.4 mm, outer Ø 17.2 mm, 2 pieces per bolt necessary, for SCHATTELLO/ALBATROS.

PVC washer for bolts, white, inner Ø 8.4 mm, outer Ø 17.2 mm, 2 pieces per bolt necessary, for SCHATTELLO/ALBATROS.

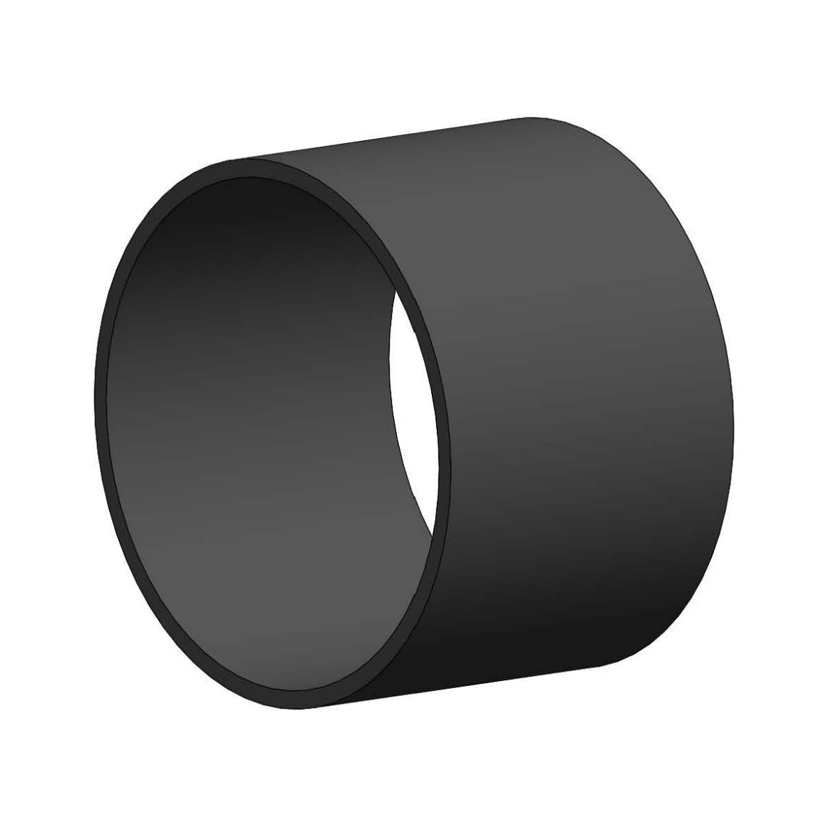

Heat shrink tubing, rubber, length 20 mm, for SCHATTELLO/ALBATROS.

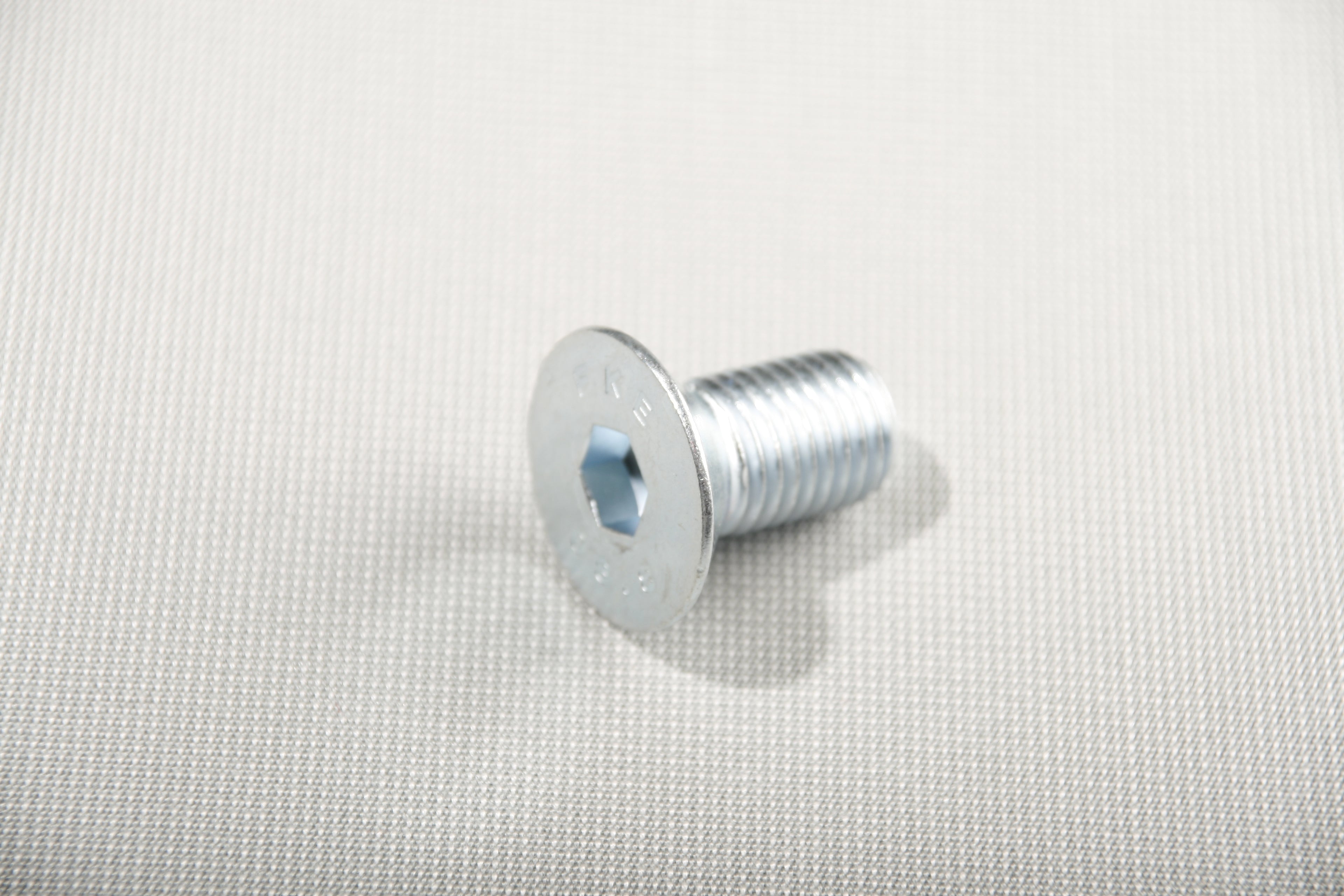

Countersunk head screw with hexagon socket, stainless steel A2, M6 x 14 mm.

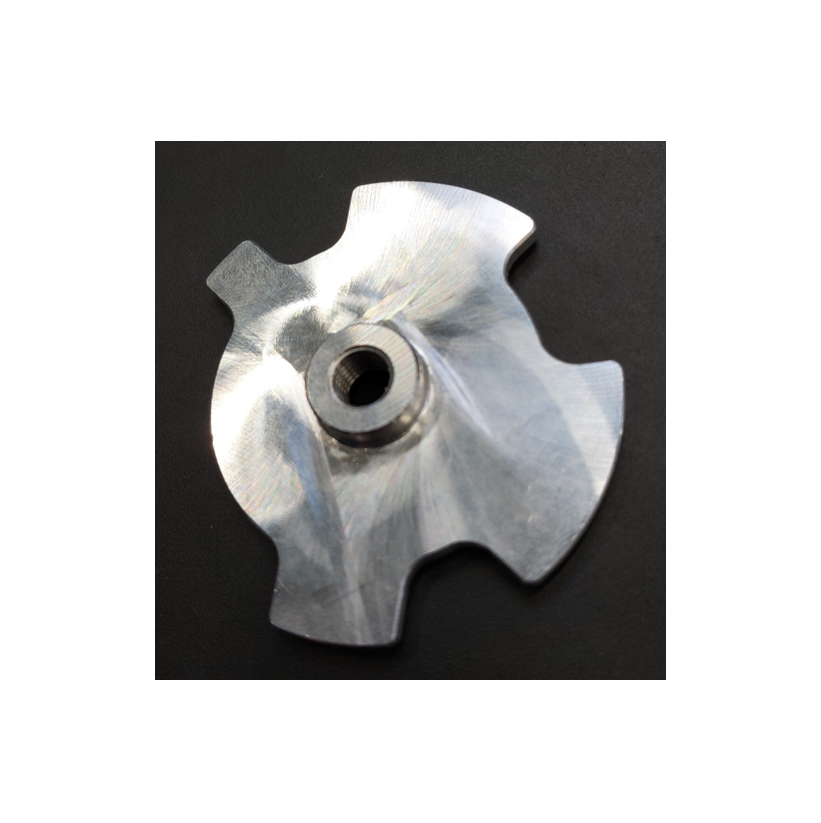

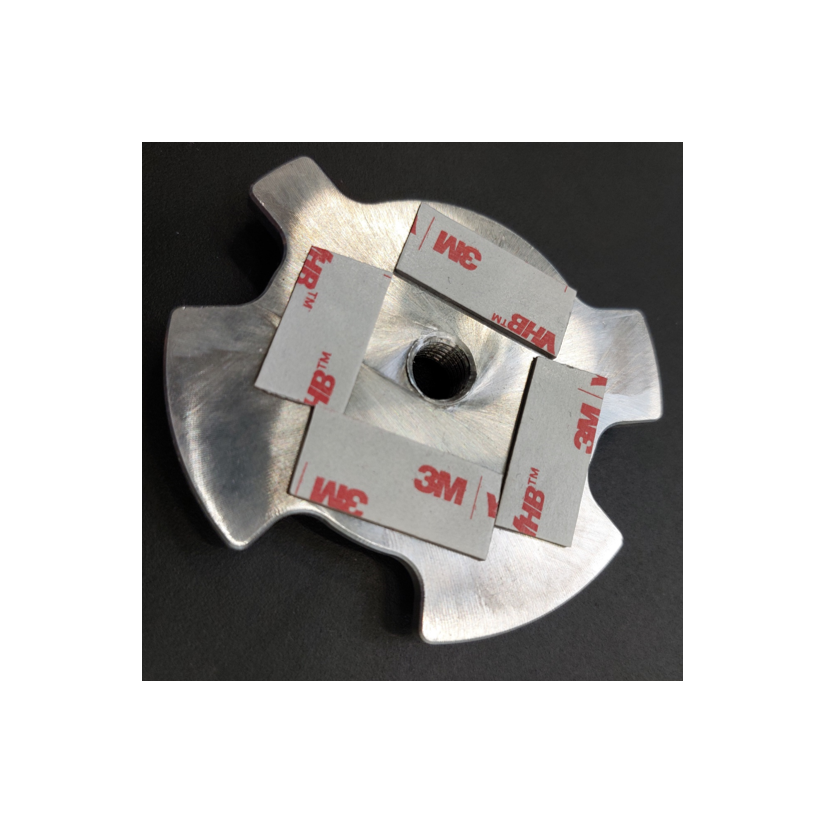

Repair disc for top cap fixation, thread M10 is made centrically, fixation with included double sided-tape made of aluminium, for FILIUS and SCHATTELLO.

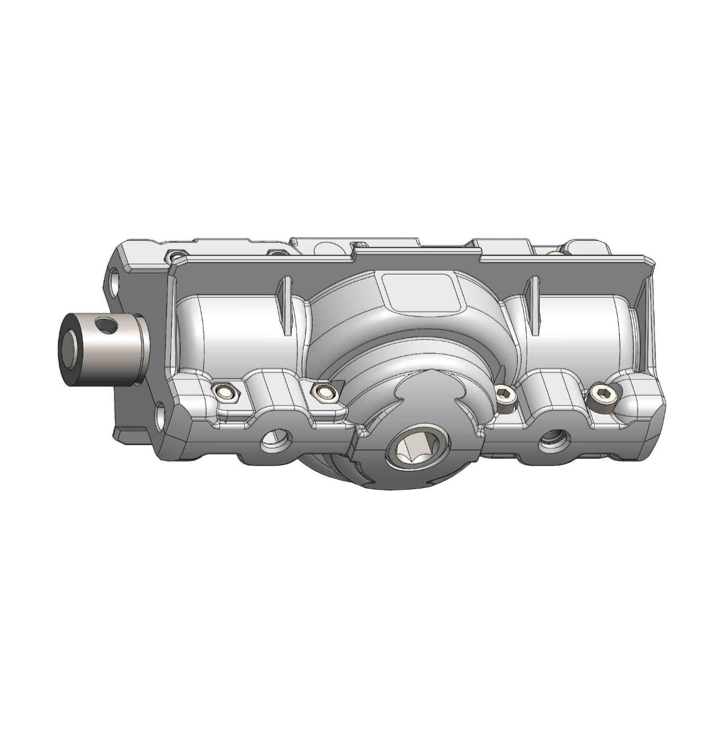

Gear ø 76 mm, 1x output gear, fits for SCHATTELLO.

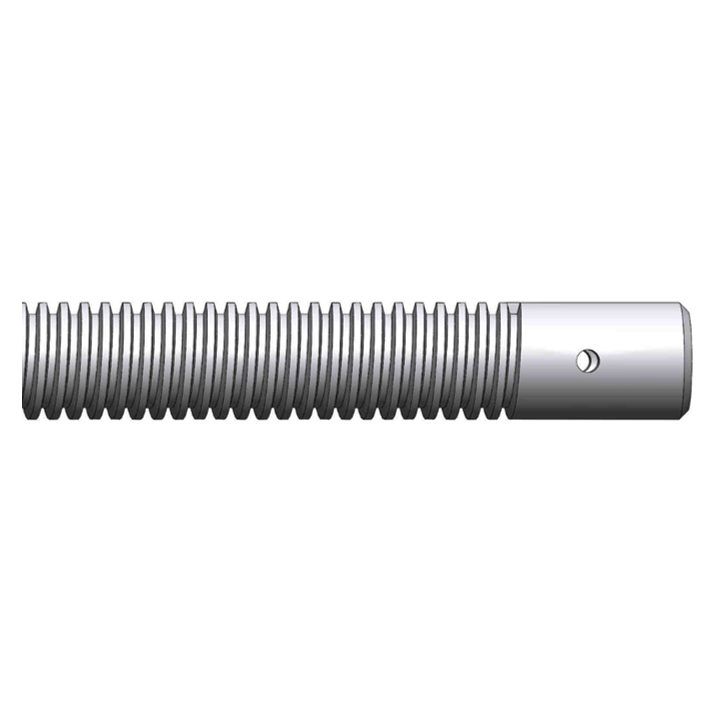

Spindle, (since approx. 1995) aluminium grey, outer ø 28 mm, length 1,340 mm, for SCHATTELLO.

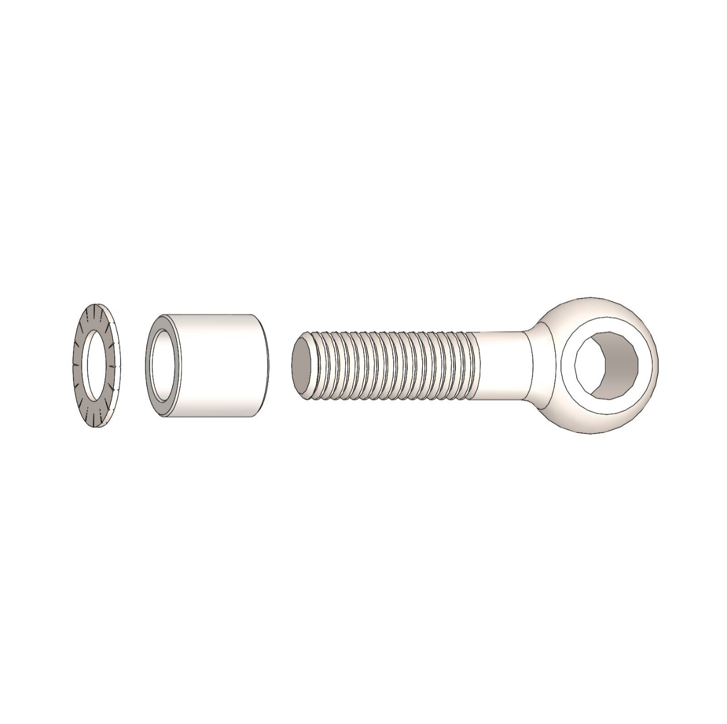

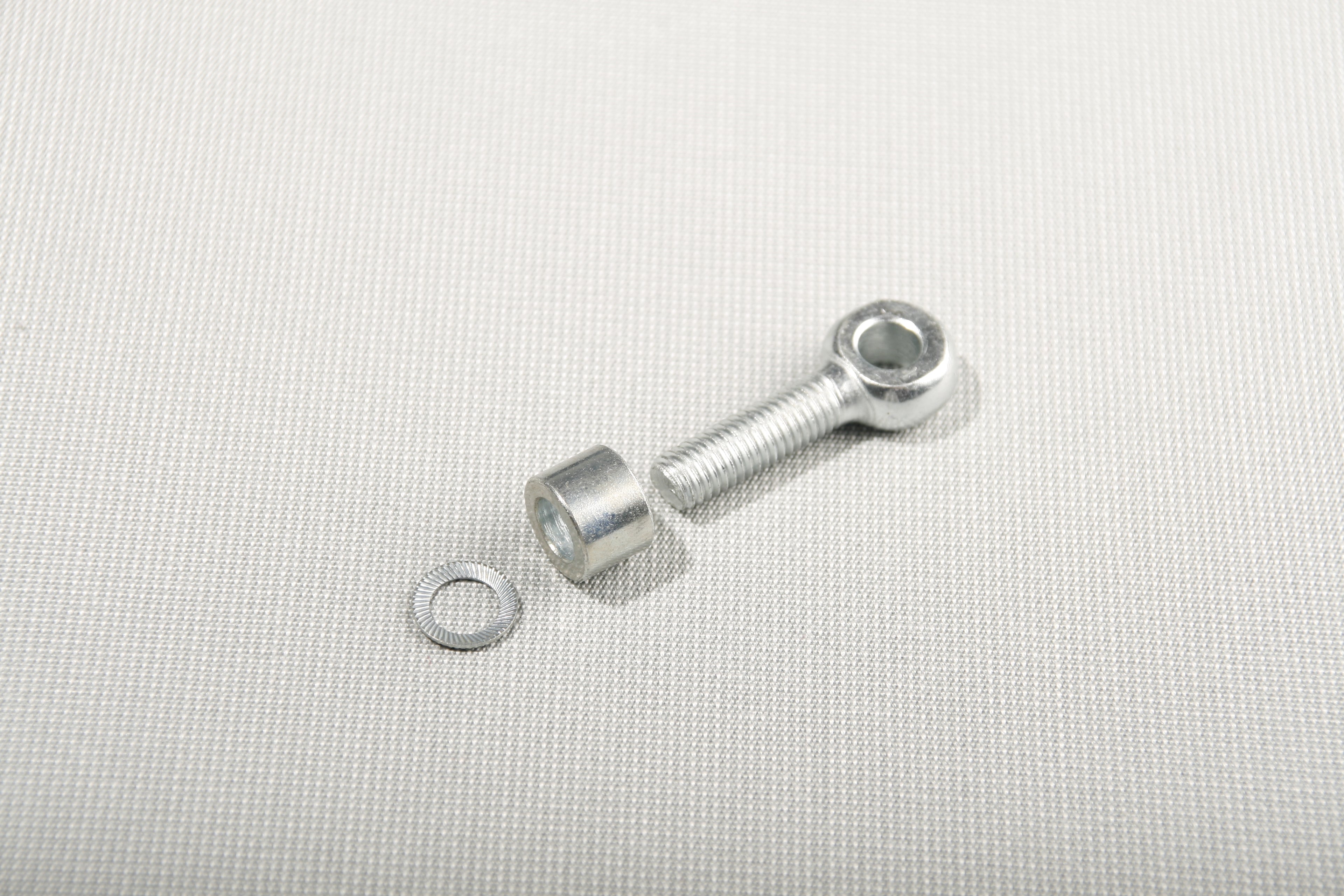

Eye bolt M10 x 45 mm, Spacer for eye bolt, Lock washer S.

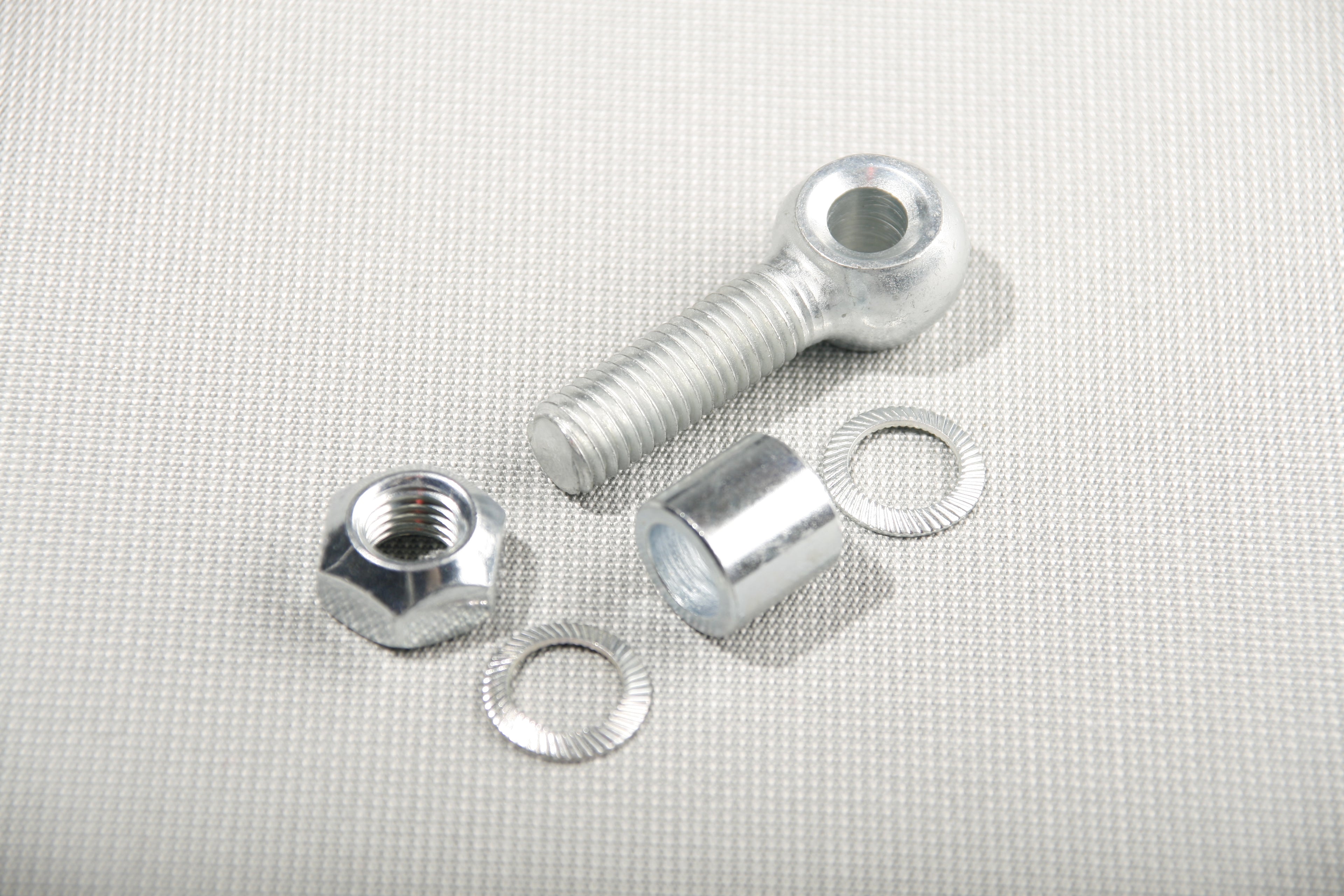

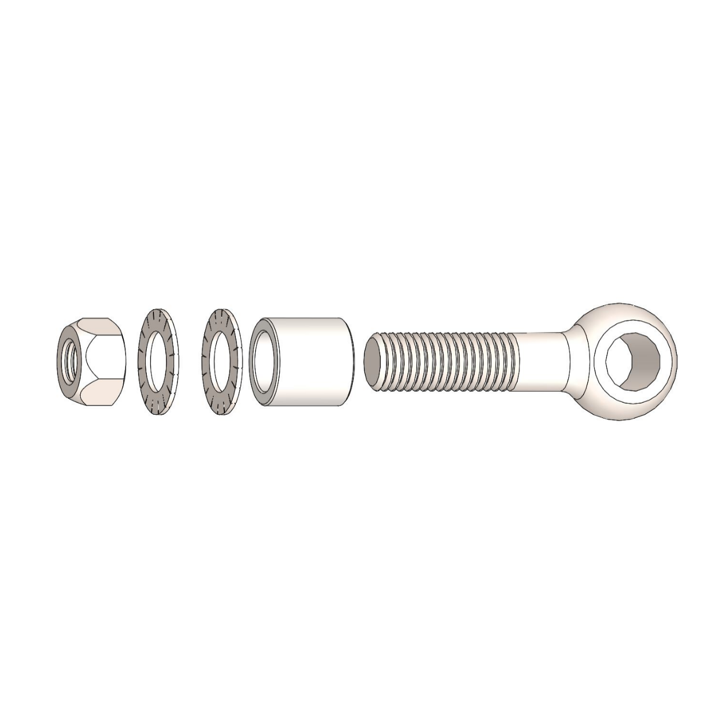

Eye bolt M10 x 40 mm, Hex nut, self-locking M10, Spacer for eye bolt, Lock washer S.

Bolt with head ø 8 mm, for spoke on upper and lower distribution flange, stainless steel A2, outer Ø 10 mm, length 29 mm, for SCHATTELLO.

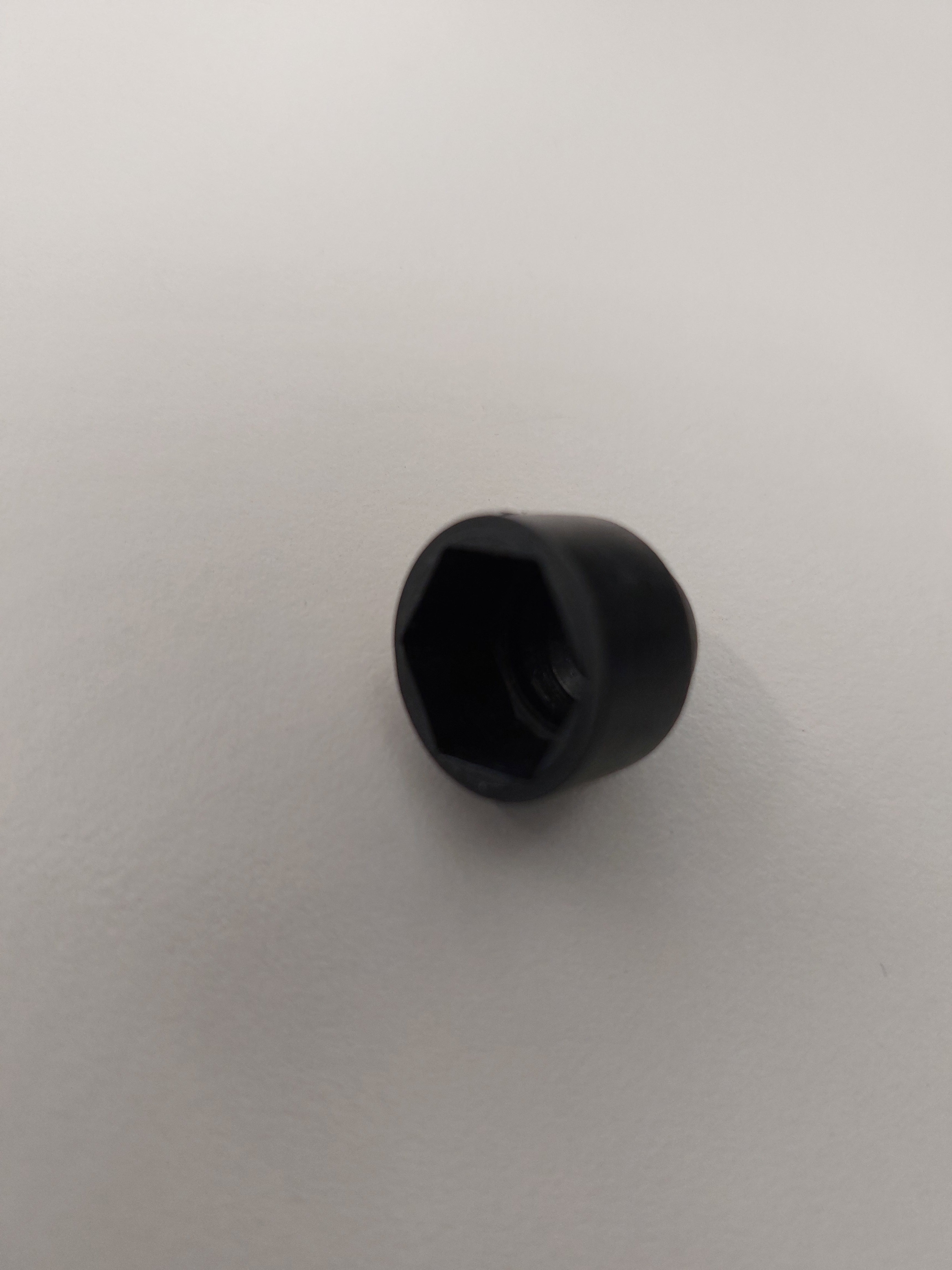

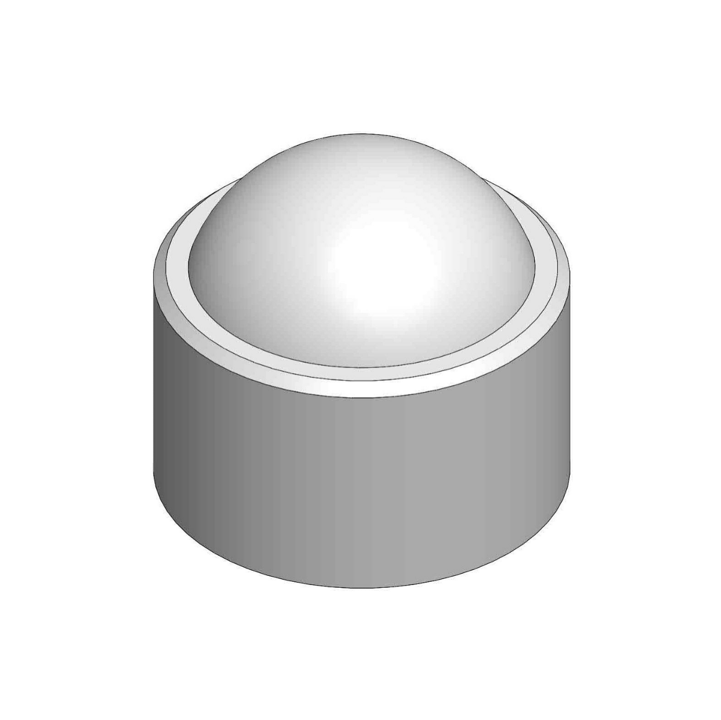

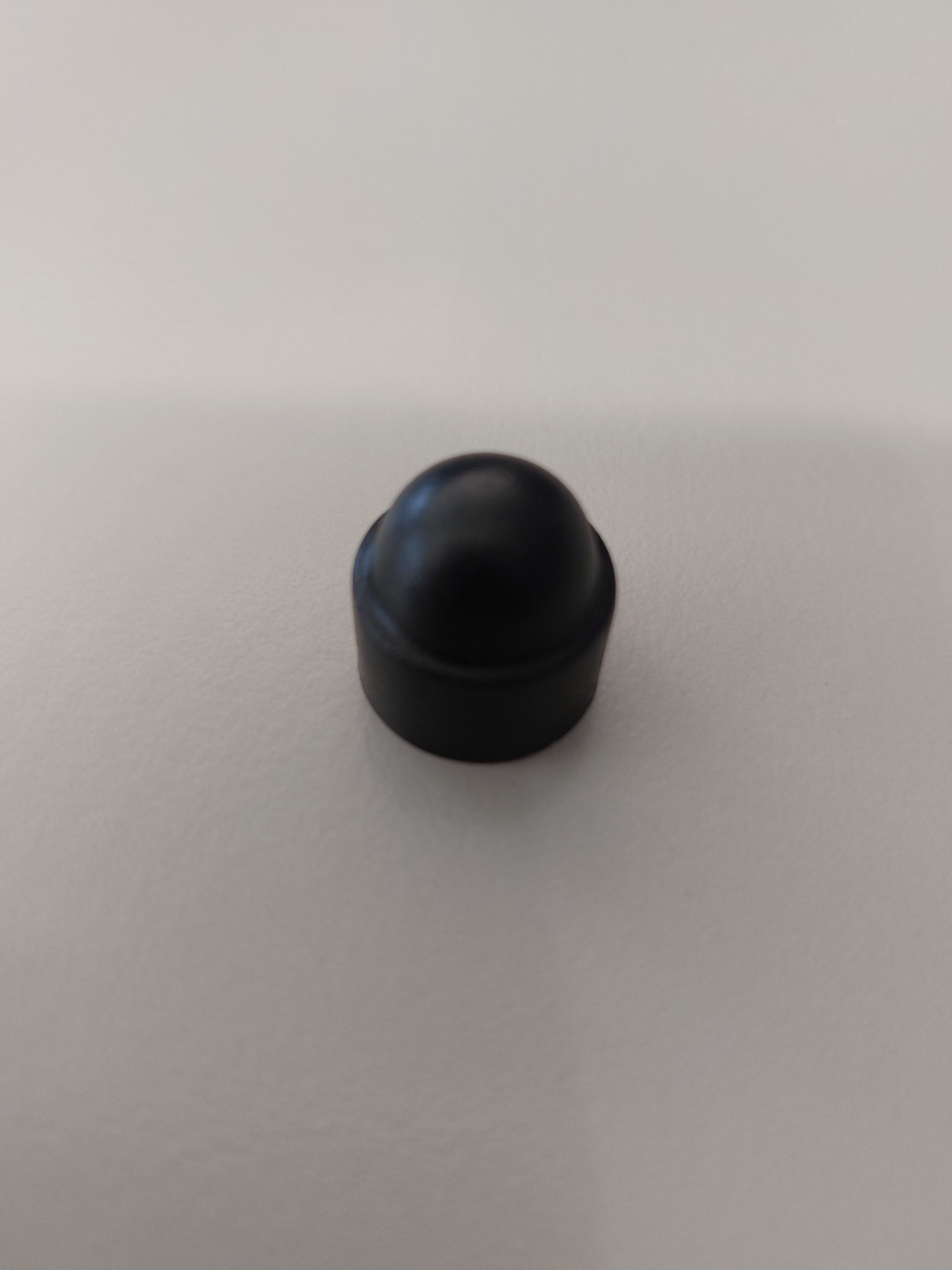

Cover cap for M8 hex nut, for model 4x5m, fits for frame in RAL 9010, plastic black, outer ø 16 mm, length 15 mm, fits for SCHATTELLO.

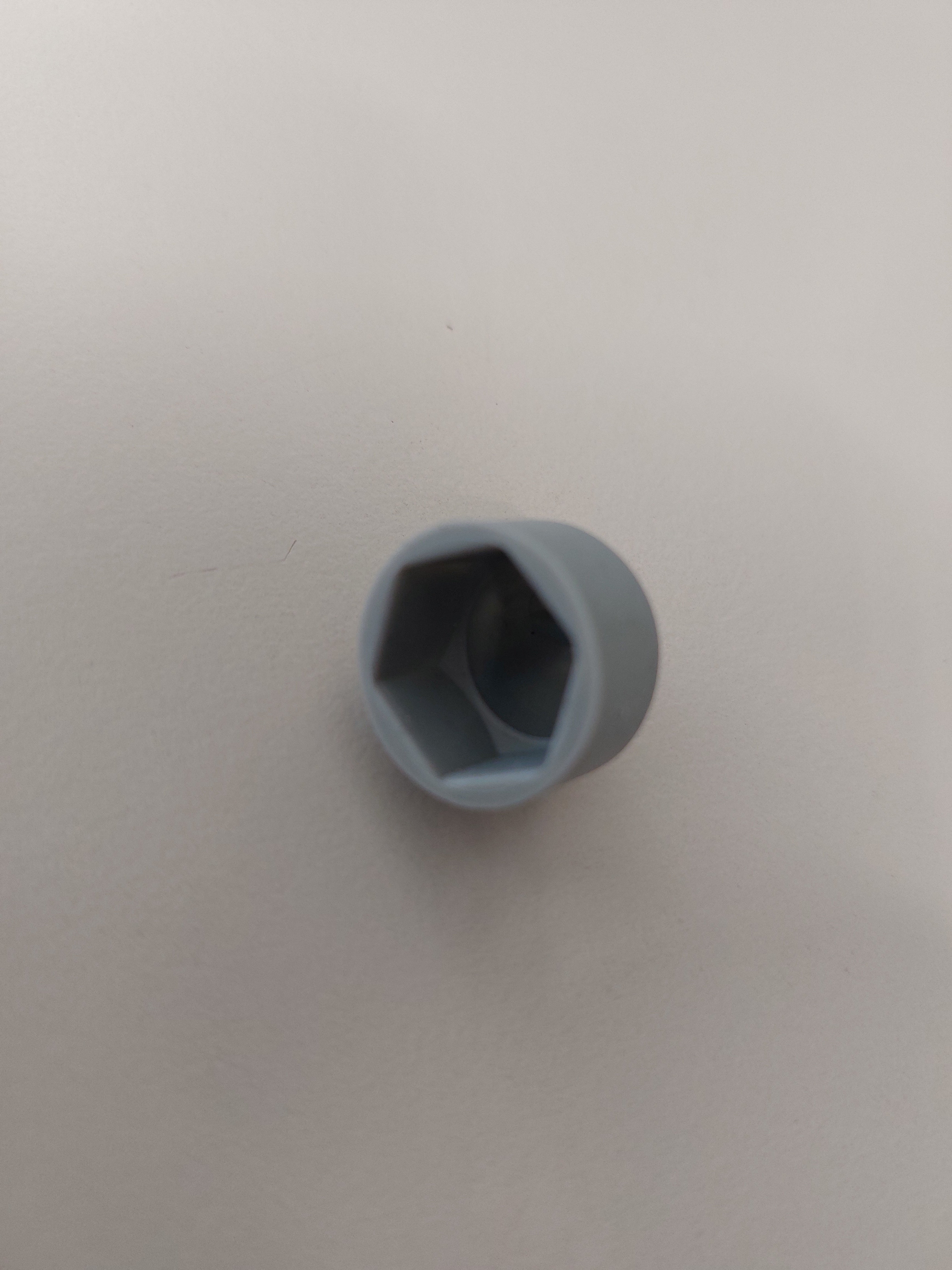

Cover cap for M8 hex nut, for model 4x5m, fits for frame in RAL 9010, plastic grey, outer ø 16 mm, length 15 mm, fits for SCHATTELLO.

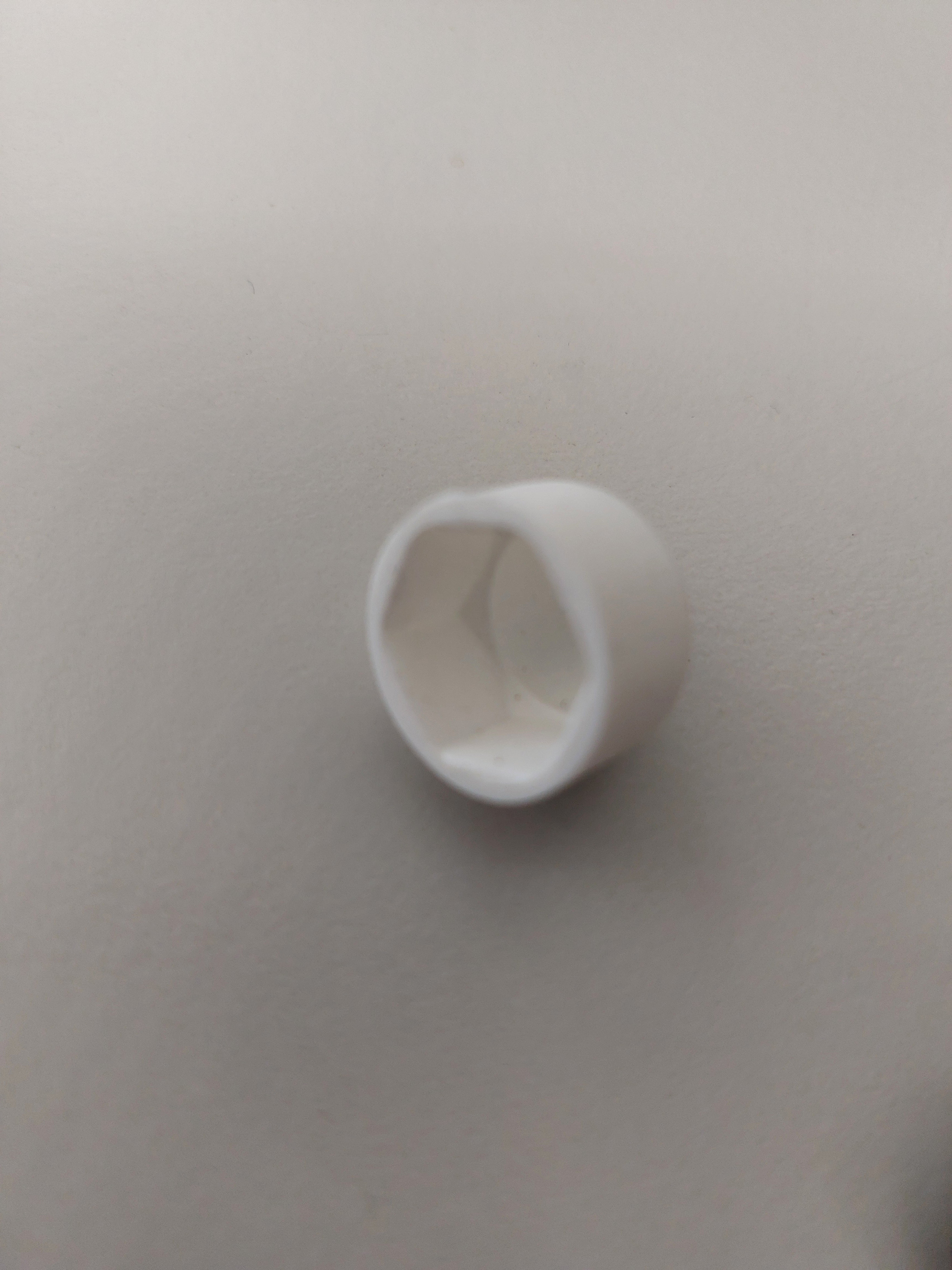

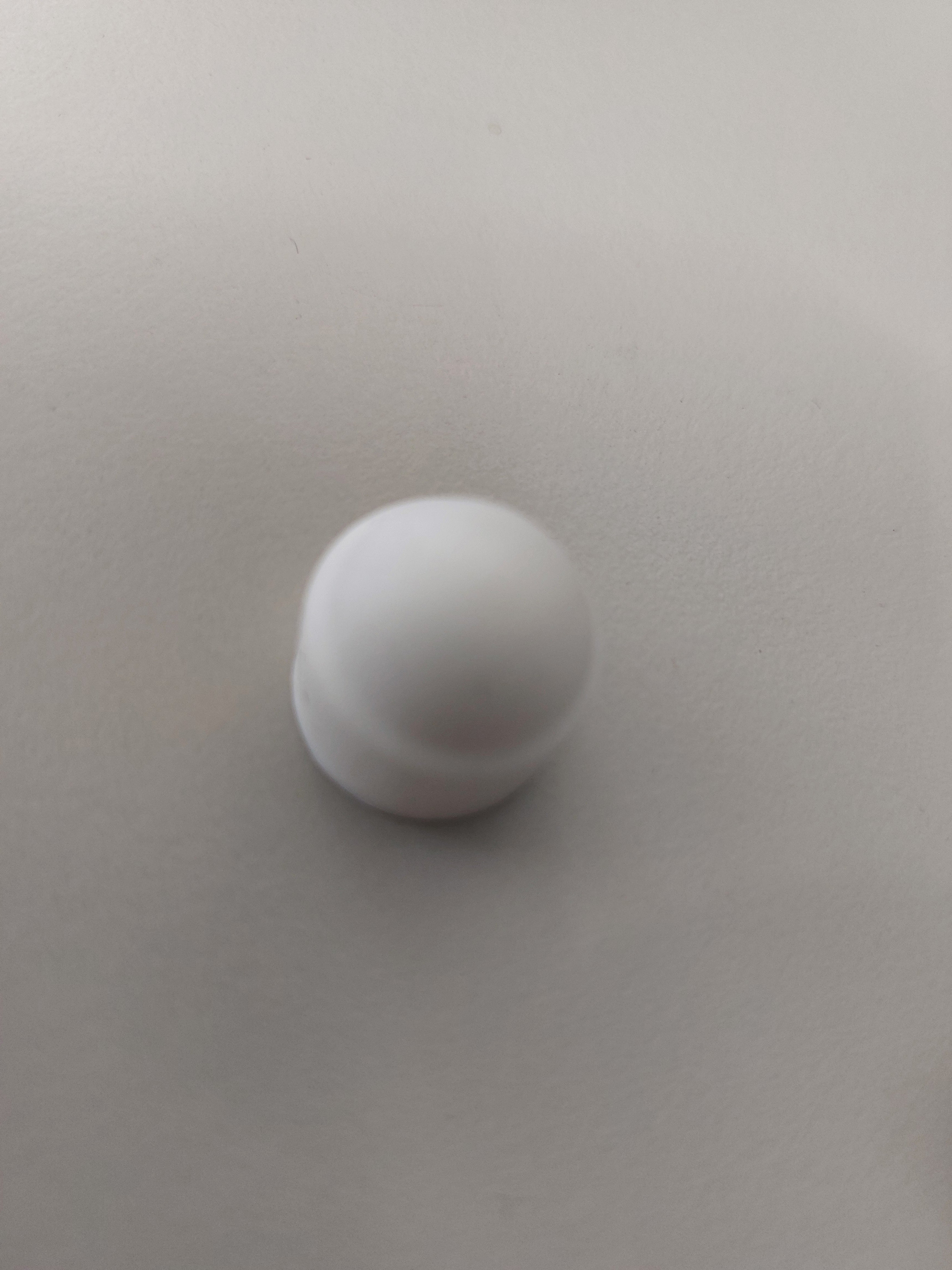

Cover cap for M8 hex nut, for model 4x5m, for frame in RAL 9010, plastic white, outer ø 16 mm, length 15 mm, for SCHATTELLO.

Cover cap for M10 hex nut, thick-walled version, fits for frame in RAL 8019 and 7016, (since approx. 2013), plastic black, outer ø 23 mm, length 18 mm.

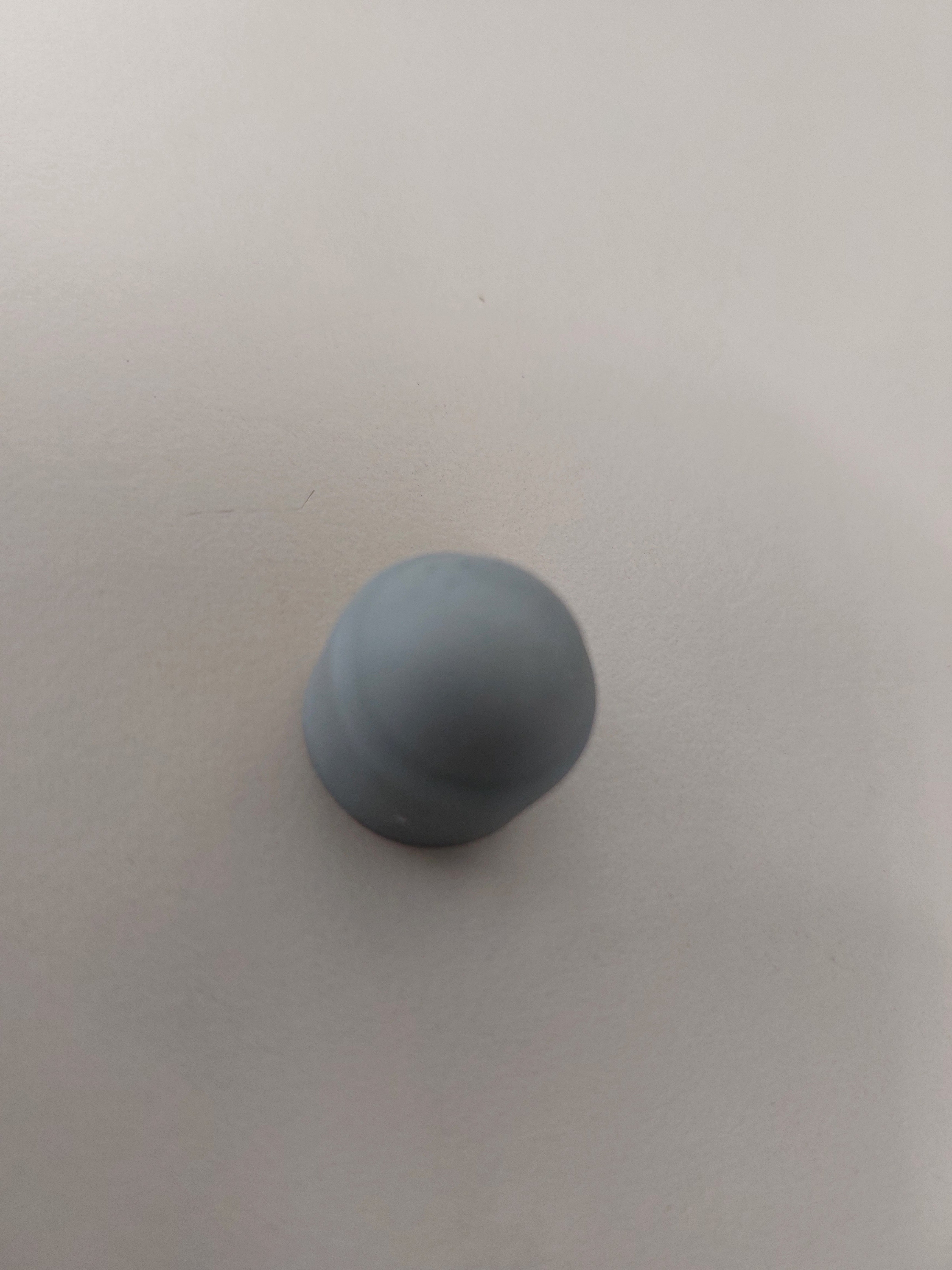

Cover cap for M10 hex nut, thick-walled version, for frame in RAL 9006, (since approx. 2013), plastic grey, outer ø 23 mm, length 18 mm.
